Products » Broadcast » Video servers & video storage » Newtek » 3Play

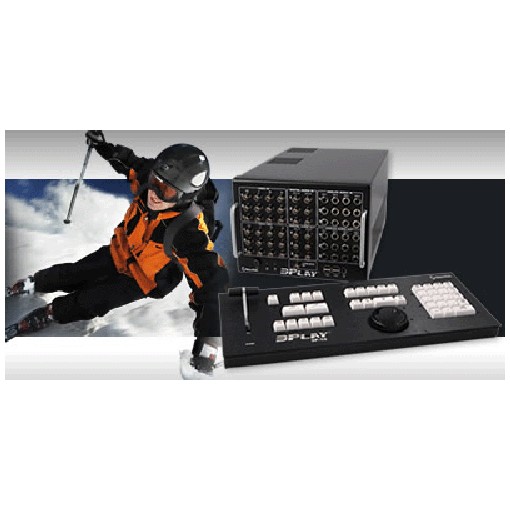

Newtek 3Play The Portable instant replay and slow motion System
 Comments: Portable Instant Replay and Slow Motion system: 3-Channel HD & SD in/out, 720p, 1080i, 480/576i, synchronized continuous recording, records 3 cameras simultaneously, highlight MPEG2 export - includes 3P-10 playback control surface with T-bar for dynamic playback speed control. Multistandard PAL-NTSC. Technical Specifications: VIDEO Inputs * 3 Serial Digital Inputs with HD-SDI and SDI support * 3 Component inputs with HD and SDI support * 3 Y/C inputs * 3 Composite inputs Outputs * 3 Serial Digital outputs with HD-SDI and SDI support * 3 Component outputs with HD and SDI support * 3 Y/C outputs * 3 Composite outputs Formats * 1080i 59.94Hz * 1080i 50Hz* * 720p 59.94Hz * 720p 50Hz* * 480i 59.94Hz * 576i 50Hz* 3PLAY supports both 16:9 and 4:3 aspects * Requires the multi-standard version of 3PLAY GENLOCK * Locks to HD or SD analog signals. * Supports either tri-level or regular sync sources. AUDIO Inputs * Up to four channels embedded audio supported on SDI and HD-SDI inputs * 3 AES3/SPDIF digital Audio inputs * 4 Balanced analog inputs per video channel * Nominal level +4 dBu (-20dBFS), Maximum level +24 dBu Outputs * 4 embedded audio outputs per video output is supported on SDI and HD-SDI * 3 AES3/SPDIF digital audio outputs * 4 Balanced analog outputs per video channel * Nominal level +4 dBu (-20dBFS), Maximum level +24 dBu FORMATS * Video is compressed using MPEG-2 VBR, I-Frame only. * Audio is uncompressed and sampled at 48kHz, 24-bit. * 30 hours of storage (10 hours of 3 simultaneous channels.) STANDARDS * HD-SDI video conforms to SMPTE 292M * SD video conforms to SMPTE 259M and ITU-R BT.656. * Analog audio levels conform to SMPTE RP-155.
Manual | |
Για πληρωμή με μετρητά ζητήστε την επιπλέον έκπτωση | |
