Allied-Vision Marlin F-033B.pdf

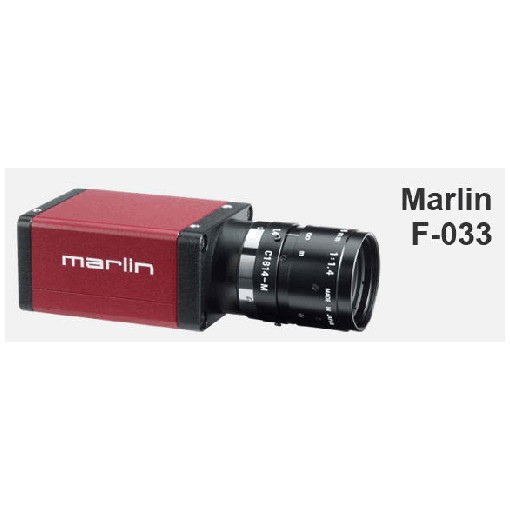

The Marlin is AVT`s classical most-sold IEEE 1394 machine vision camera. Since 2004, many thousand Marlins are part of various different image processing applications. Due to its modular design (angled head, side-entry connectors, AVT modular concept), it fits with almost every application. The seven camera models are equipped with renowned Sony CCD sensors (exception: Marlin F-131B with CMOS by Cypress). The Marlin includes many beneficial real-time image pre-processing functions. Just like all other AVT cameras, it has a robust housing and is available as medical design version.
Also known as
Image sensor size : 1/2 inch
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 656 x 494
3D Video Support : No
Ethernet, GigE (RJ45) : No
Infra Red support (IR,NIR) : Yes, Various IR cut/pass filters
Streaming : No
Firewire (IEEE1394) connector : Yes
Max video frame rate (fps) : 73 fps
USB 2 connector : No
PoE : Not supported
Camera Link (CL) : No
