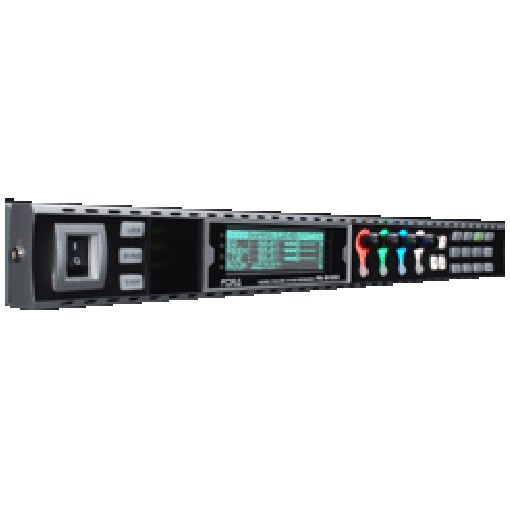

We are proud to introduce a new signal processor that supports all formats: HD, SD, analog, digital, plus audio. The FA-9100/RPS uses 12-bit internal processing for high quality images. The FA-9100/RPS goes beyond the realm of a typical signal processor featuring numerous options like an up-converter, down-converter, color corrector, median-based noise reduction, logo generator, Dolby E encoder and Dolby E decoder. THE Processor is the next generation multi purpose signal processor.
Input/Output of All HD, SD, Digital, and Analog Formats
The FA-9100/RPS supports all video signal formats, HD-SDI, SD-SDI, HD analog component, SD analog component, NTSC/PAL analog composite, and Y/C.
Digital/Analog Audio Support
The FA-9100/RPS provides digital or analog input/output for audio signals in the same way as it handles video signals. 8-channel support is provided for embedded audio and AES/EBU, and 4-channel support is provided for analog audio. Multi-channel audio signal processing is possible without phase differences between channels. Individual level adjustments can be made for each audio channel, and audio delay adjustment is provided for synchronizing to the video signal.
12-bit Internal Processing for High Image Qualit
The FA-9100/RPS uses 12-bit internal processing for dramatically better format conversion and A/D and D/A image quality. FOR-A use the best elements in image processing technology which enables us to provide image quality that stands out from the competition.
High-quality AD Converter and DA Converter
In the FA-9100/RPS, the input signal is converted to all video output signals that are possible. Signal conversion of all output signals by A/D or D/A is constantly performed, allowing an on-air system to have all output signals available.
Powerful Frame Synchronizer Performance
FOR-As frame synchronizers have always exhibited superior performance when processing video with poor quality signals. The FA-9100/RPS incorporates all of this technical expertise into a single unit, developed with the highest priority on reliable frame synchronization.
Powerful Video Delay Circiut
A delay unit is incorporated that also allows adjustment of video delay in addition to audio delay. This is useful for delay adjustment with Dolby E signals and for preparing composites with computer graphics when using Virtual Studio.
2D/3D Comb Filter
2D or 3D comb filter is available for selection during analog composite signal conversion.
FA-9100RPS: Redundant Power Supply Model
The redundant power supply model, FA-9100RPS also available.
Standard Support for SNMP Monitoring
The FA-9100/RPS has a built-in Ethernet port that provides support for network monitoring using SNMP protocol. This feature allows remote checking of device status, signal errors and other available information.
Wide Range of Remote Interfaces
Like all FOR-A FA-series models, a remote interface using a BNC connection is standard. Additionally, remote control using GPI is also supported.
Scramble Connection Support
The FA-9100/RPS supports scramble connections to allow multiple remote control units and SNMP control software to communicate with multiple main units.
Up/Down/Cross-conversion
Up/Down/Cross-converter is optionally availble for enabling conversion of HD signals to SD, SD signals to HD, HD 1080i to 720p, and HD 720p to 1080i. With the FA-9100/RPS, theres no need to have an external up/down/cross converter.
*No frame rate conversion function is provided.
HD→HD
Cross Convert Format Convert format
1080/59.94i 720/59.94p
1080/50i 720/50p
720/59.94p 1080/59.94i
720/50p 1080/50i
HD→SD
Down Conver, Format Convert
1080/59.94i, 1080/23.98PsF NTSC, 525/60
1080/50i, 1080/24PsF PAL, 625/50
720/59.94p NTSC, 525/60
720/50p PAL, 625/50
SD→HD
Up Convert,Format Convert
NTSC 1080/59.94i, 1080/23.98PsF, 720/59.94p
525/60 1080/59.94i, 1080/23.98PsF, 720/59.94p
PAL 1080/50i, 1080/24PsF, 720/50p
625/50 1080/50i, 1080/24PsF, 720/50p
HDV/DV Interface
HDV/DV encoder/decoder option available for decoding DV or HDV streams from an IEEE1394 terminal and encoding to various baseband signal DV/HDV formats.
- FA-90DV: DV interface card
- FA-90HDV: DV and HDV interface card
Dolby E Encoder/Decoder
A Dolby E encoder/decoder can be installed as an additional audio function. This option provides support for Dolby E - a surround sound distribution system by Dolby Laboratories. Dolby E signals input from an external encoder can be decoded, or internal audio signals can be encoded to Dolby E and output.
- FA-90DE-D: Dolby E decoder card
- FA-91DE-ED: Dolby E encoder/decoder card
Process Control
The standard model allows adjusting video level, chroma level, chroma phase, and setup level. Remote control of these parameters is also possible.
- Adjustment functions in Video level, Chroma level,
Setup level and Chroma phase
Color Correction
In addition to the standard process control function, a color correction option is also available. Three available color correction modes (balanced, differential and sepia) with gamma correction and various clip functions are provided to enable easy reproduction of the videos original color space and range.
- Three color correction functions (balance, differential and sepia)
- Gamma adjustment functions in HIGH, MID and LOW tones
- White level and Black level adjustment functions
- Clip functions (Y-white, C-white, Y-black clip)
FA-91LG: Logo Generator
- Includes 128MB flash memory to save up to 256 files of logo data
- Up to eight logo data in HD full size in standby
- Adjusting the position and transparency level setting
- Data transfer via Ethernet interface
- Logo management software available
FA-91FRC: Frame Rate Converter
- Provides frame rate conversion by nearest frame method between: 1080/59.94i, 1080/50i, 1080/23.98PsF, 1080/24PsF 720/59.94p, 720/50p, 525/60i, 625/50i including analog component and composite (NTSC, PAL)
- Requires FA-90UD option
FA-91ALC: Auto Level Control
- Automatic real-time monitoring and correction of: White Level, Black Level and Gamma Curve simultaneously
- This feature allows users to auto-track the subject in video and make a perfect correction for light levels providing sharper and clearer picture in real-time
- Requires FA-90CC Color Corrector option
