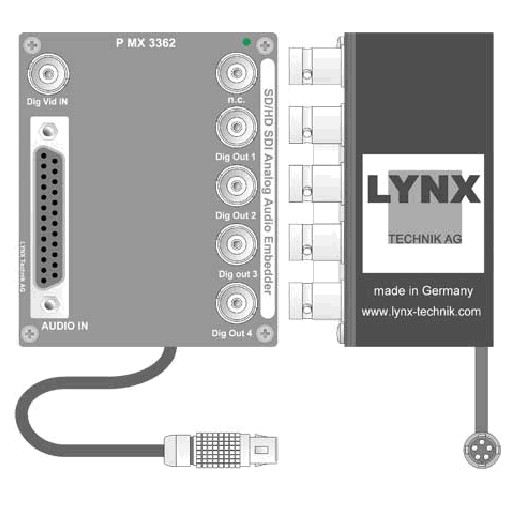

The P MX 3362 is a versatile multiformat audio embedder which accepts 2 analog stereo pair inputs. The SDI Input video standard (and format) is automatically detected.

The analog input can be scaled using a selection of full scale presets before being converted to a digital signal and passed to a 4 x 16 mono crossbar. The crossbar allows the 4 input channels to be mapped to any of the 8 AES inputs to the embedder. Any existing embedded audio can be replaced, deleted or passed transparently through the embedder.

4 x SDI outputs are provided with embedded audio, if the embedder is not being used then the module also serves as a 1 > 4 multiformat re-clocking distribution amplifier.

Microprocessor control and on board Flash RAM enable configurations and settings to be stored within the module.

Remote control, status monitoring and error reporting is possible when using the LYNX control system.
