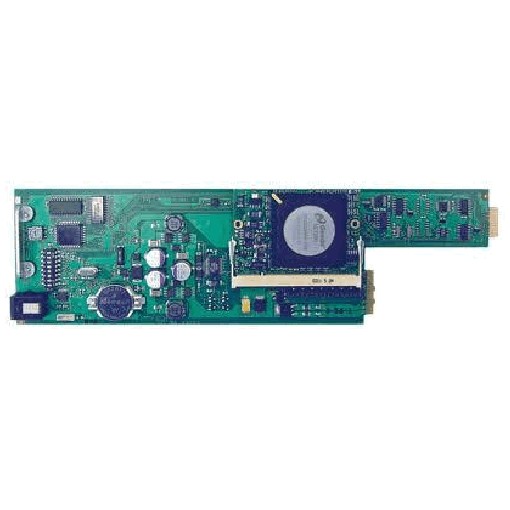

This unit provides central 5V DC power and remote control capability for up to ten 3000 series modules. General purpose alarm contacts for power failure are provided on the integral termination panel. A second power supply can be added for redundancy. (See R PS 5010) The chassis also enables remote control for all connected modules. SeeLynx 3000 remote control systems. The integral termination panel provides all the connectivity required for future expansion. The chassis is primarily designed for use with the RFR 3005 19-inch mounting plate. The two units can be joined together to form a low profile, self-contained, integrated rack mounting solution.
Connections on termination panel on side of chassis: LAN, RJ 45; bus connector (RS 485): D-sub, 9-pin, female. Local connector (RS232): D-sub, 9-pin, female. Alarm connector: D-sub, 9-pin, male. Power source: 90 to 250Volts AC, 47Hz to 63Hz. Two separate and isolated connections for Primary and Redundant supplies, each IEC, fused 2 Amps, 130W maximum. Dimensions: 113mm x 330mm x 146mm. Weight: 4kg with single power supply (no modules fitted.) Rated ambient: 5°C to 35°C, maximum 80% non condensing.
