Operation
Zoom Manual
Focus Manual
Iris Auto (DC Type) (*1)
Focal Length (mm) 2.9 ~ 8(2.7x)
Iris Range F0.95 ~ T360 (Equivalent to F360)
Back Focal Distance (in air) (mm) 7.7
Exit Pupil Position (From Image Plane) (mm) 71
Mass (g) 45
Remarks

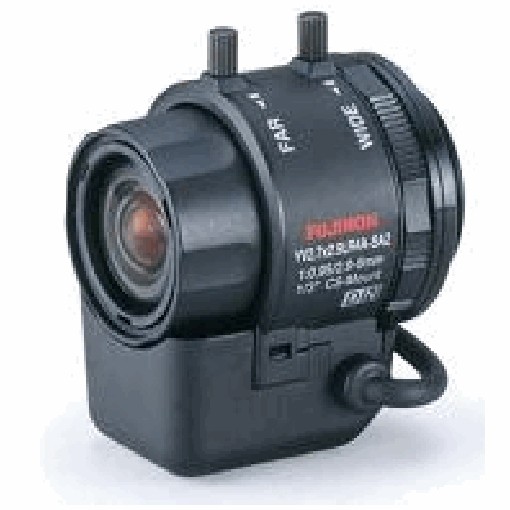

With Metal Mount (*1( When Power is turned off, iris will automatically be closed. YV2.7x2.9LR4A-SA2L: Long Cable Type (230mm)
Focusing Range (From Front Of The Lens) (m) ∞ ~ 0.3
Current Consumption
22mA (Max.) at DC 4V
Coil Resistance Drive Coil 200Ω Damping Coil 720Ω
1/3 Angle of View
Wide 94°39 x 69°29
Tele 35°13 x 26°22
Object Dimensions at M.O.D.
Wide 671 x 428
Tele 196 x 145
1/4 Angle of View
Wide 69°29 x 51°29
Tele 26°22 x 19°46
Object Dimensions at M.O.D.
Wide 428 x 298
Tele 145 x 107
