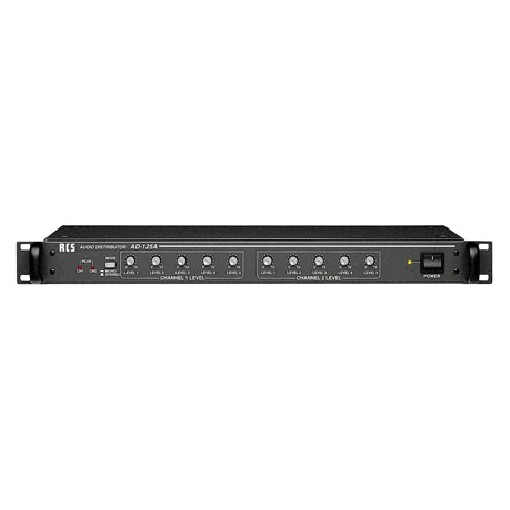

The AD-125A audio distribution amplifier is, so to speak, the central unit of the extremely flexible line level distribution system. The system serves to route line signals from mixer preamplifiers, sound source devices, etc. of up to 10 output channels (power amplifier, with 1-channel operation) or 2 x 5 output channels (with 2-channel operation).
Also known as
Permanent Installation : Yes
Balanced Audio Input (XLR) : 2 stereo Inputs
Weight : 2.9 Kg
Balanced Audio output (XLR) : 5 Outputs
Ethernet, GigE (RJ45) : No
USB 2 connector : No
RS232/422 connector : No
100V support : No
Redundancy : Terminal for 24V DC
Digital audio AES/EBU : No
Input twisted pair (TP) : No
Output twisted pair (TP) : No
Audio frequency response (from) : 20 Hz
Audio frequency response (up to) : 20 KHz
Fiber optics Input : No
Fiber optics Output : No
Stereo : Yes
