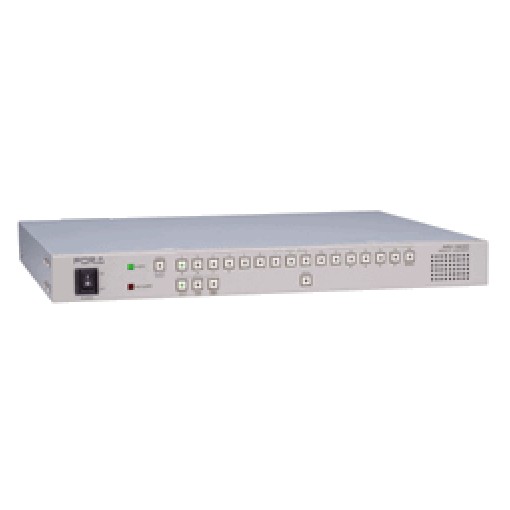

With the MV-1600, you can view video from up to 16 channels on a single monitor. In addition to regular video output, the MV-1600 also includes SXGA high-resolution output and a remote monitoring function over a network as standard features.

Input of up to 16 asynchronous composite signals (color, B/W)
Loop-through terminals for each input for support of system expansion
2 analog composite outputs: Full screen, 4-split screen, or 16-split screen can be displayed.
SXGA (1280 x 1024) high-resolution output: Full screen, 4-split screen, 9-split screen*1, or 16-split screen is available.
Network video transfer function: Monitoring video can be transferred over the network at a maximum transfer frame rate of 60fps*2
Title display function: Up to 8 characters per channel (up to 6 characters in composite output) (alphanumeric characters, Japanese kana, symbols)
Automatic switching function: Enables automatic switching between full screen and split-screen displays
External alarm input/output terminal: Enables alarm-linked display
Includes dedicated software package enabling viewer functions and settings and control over a LAN connection
Enables control using a parallel remote connection and RS-232C interface
Security system with ID and password incorporated
Multicast mode allows each PC to control images remotely. *1: The screen size for each channel in 9-split screen is identical to the size for the 16-split screen.
*2: The maximum frame rate of 60fps may not be reached due to the transferred video, JPEG compression rate, connected PC, and network environment.
