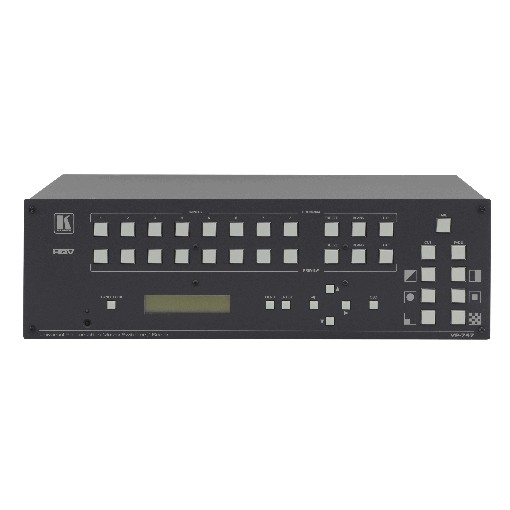

Kramer VP-747 | 8x2:3 ProScale In-CTRL Dual Scaler Seamless Switcher

Kramer VP-747 | 8x2:3 ProScale In-CTRL Dual Scaler Seamless Switcher
Brand Kramer

3.900,00€
3.510,00€ + VAT Request lower price Interest form

The VP-747 In-CTRL Dual Scaler Seamless Switcher is a true multi-standard scaler and seamless switcher with 8 universal inputs comprised of 5 BNCs each, any of which can accommodate a composite video, s-Video (Y/C), component video (RGB/YUV), RGBS, or RGBHV signal. Inputs 1 and 2 also can be configured to HDMI/DVI inputs. The unit has dual scalers, one for the preview and the other for the program output. Dual scalers are required to do “true” seamless transitions from one source to another.

Also known as

VP747

(VP 747)

TECHNICAL SPECS

Permanent Installation : Yes, 19 (3U) Rack

Analog video input (AV,Component) : 8 Inputs

HDMI,DVI Output : 1 Output

Balanced Audio Input (XLR) : No

HD-SDI Output : No

HDMI,DVI Input : 2 Inputs

Analog video out (AV,Component) : 2 Outputs

Weight : 6.7 Kg

Balanced Audio output (XLR) : No

3D Video Support : No

HD-SDI Input : No

Ethernet, GigE (RJ45) : Yes

SD-SDI Output : No

SD-SDI Input : No

Firewire (IEEE1394) connector : No

USB 2 connector : Yes

RS232/422 connector : Yes

Input twisted pair (TP) : No

Output twisted pair (TP) : No

Fiber optics Input : No

Fiber optics Output : No
