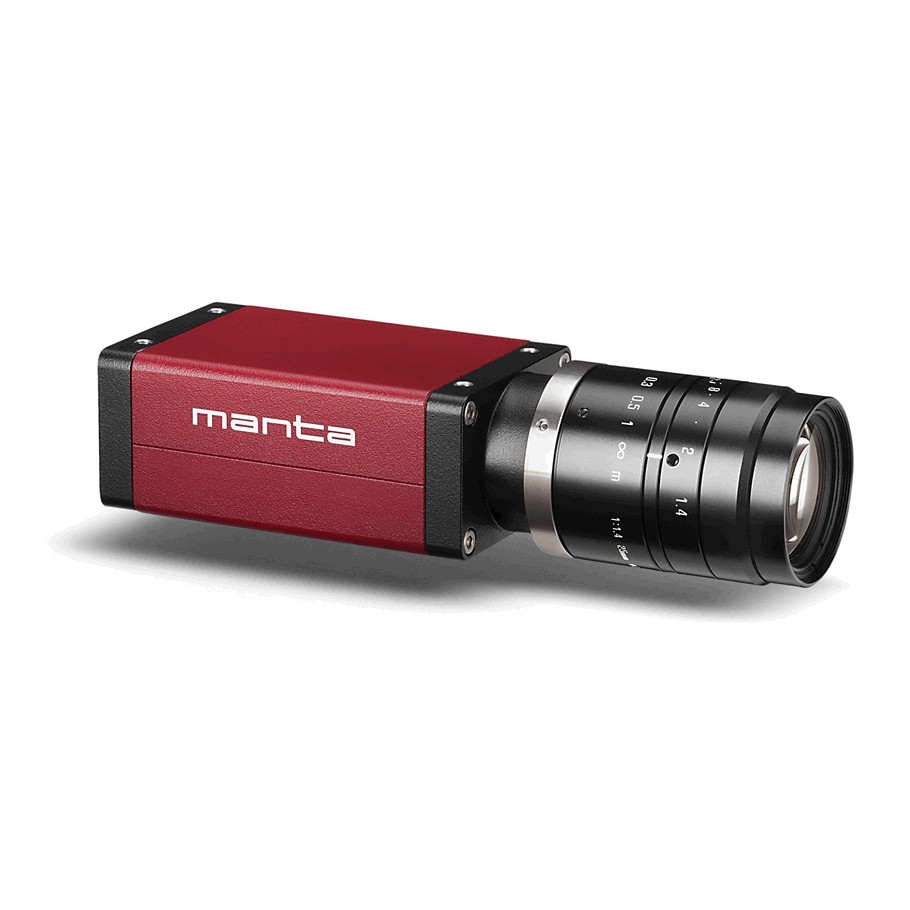

Allied-Vision Manta G-125B PoE.pdf
GigE Vision camera with 3 LUTs, color correction, PoE and more options
The Manta is a flexible, feature-rich GigE Vision camera with an outstanding price/performance ratio. It incorporates three LUTs, sophisticated color correction algorithms, a robust metal housing, and many modular options like angled heads or board level versions. Manta cameras cover a wide range of imaging applications. The Manta is now optionally available with PoE (Power over Ethernet).
Sony CCD sensors, VGA to 5 Megapixels
Two configurable inputs, two configurable outputs (all optocoupled)
Three LUTs, color correction, binning, sub-sampling and more
Options
Various IR cut/pass filters
CS/M12 Mount adapters
Angled head
White medical housing
Board level versions on request
Also known as
Image sensor size : Type 1/3
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C/CS-mount
Image sensor pixels : 1.2 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : Yes, Various IR cut/pass filters
Streaming : Yes
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 30 fps
USB 2 connector : No
PoE : Yes
Camera Link (CL) : No
Allied-Vision 2815
12-Pin Hirose female to open end, 3.0 m (replacement for 02-6031A,02-6033A,K1200192)
