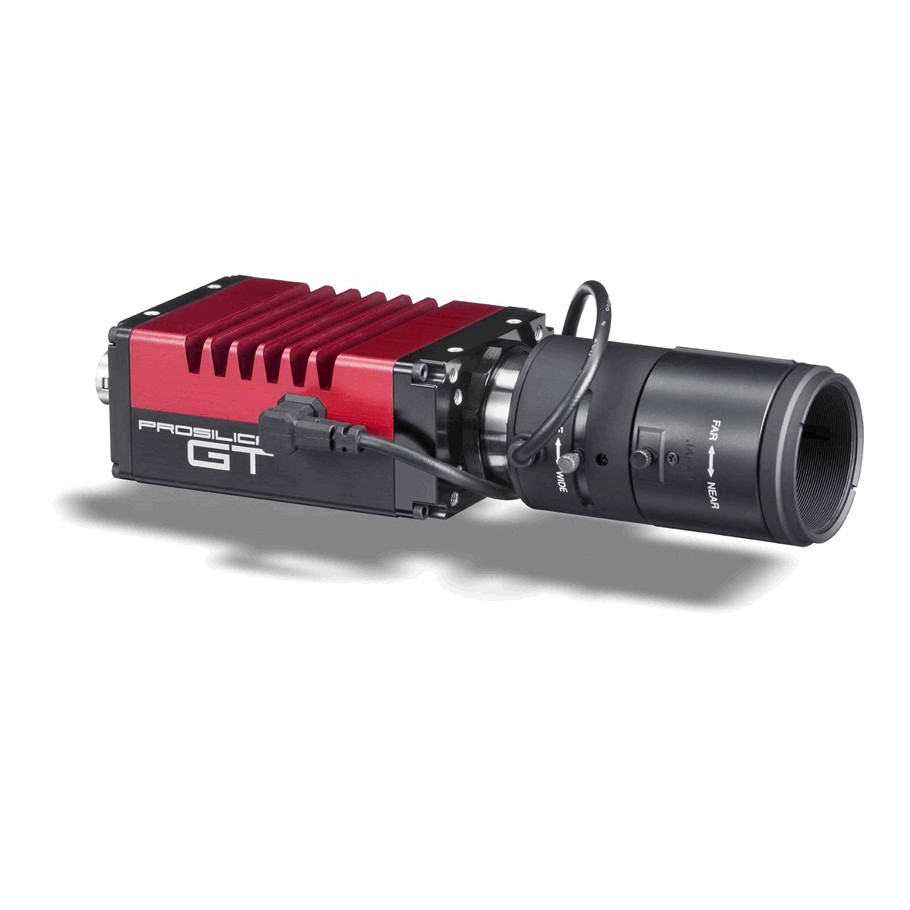

Prosilica GT1290 is a 1.2 Megapixel camera with a GigE Vision compliant Gigabit Ethernet port and Hirose
I/O port. Prosilica GT1290 is offered in both monochrome and color models. This camera incorporates
the high-quality Type 1/3 (6.0 mm diagonal) Sony ICX445 EXview HAD CCD sensor providing excellent
monochrome and color image quality. The EXview HAD CCD is a sensor that drastically improves light
efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation Diode)
sensor. At full resolution, this camera runs 33.3 frames per second. With a smaller region of interest,
higher frame rates are possible. It is a robust camera designed to operate in extreme environments
and fluctuating lighting conditions. This camera offers Precise iris lens control allowing users to fix the
aperture size to optimize depth of field, exposure, and gain without the need for additional control
elements. By default monochrome models ship with no optical filter and color models ship with an IRC30
IR cut filter.
Benefits and features:
• Monochrome (GT1290) and color (GT1290C) models
• GigE Vision interface with Power over Ethernet
• Screw mount RJ45 Ethernet connector for secure operation in industrial environments
• Supports cable lengths up to 100 meters (CAT-5e or CAT-6)
• Trigger over Ethernet (ToE) Action Commands allow for a single cable solution to reduce system costs
• Comprehensive I/O functionality for simplified system integration
• Popular C-Mount lens mount
• Easy camera mounting via standard M3 threads or optional tripod adapter
• Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third
party image-processing libraries.
Also known as
Image sensor size : Type 1/3
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 1.2 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : No
Streaming : Yes
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 32 fps
USB 2 connector : No
PoE : Yes
Camera Link (CL) : No
