Allied-Vision Prosilica GT2300C.pdf

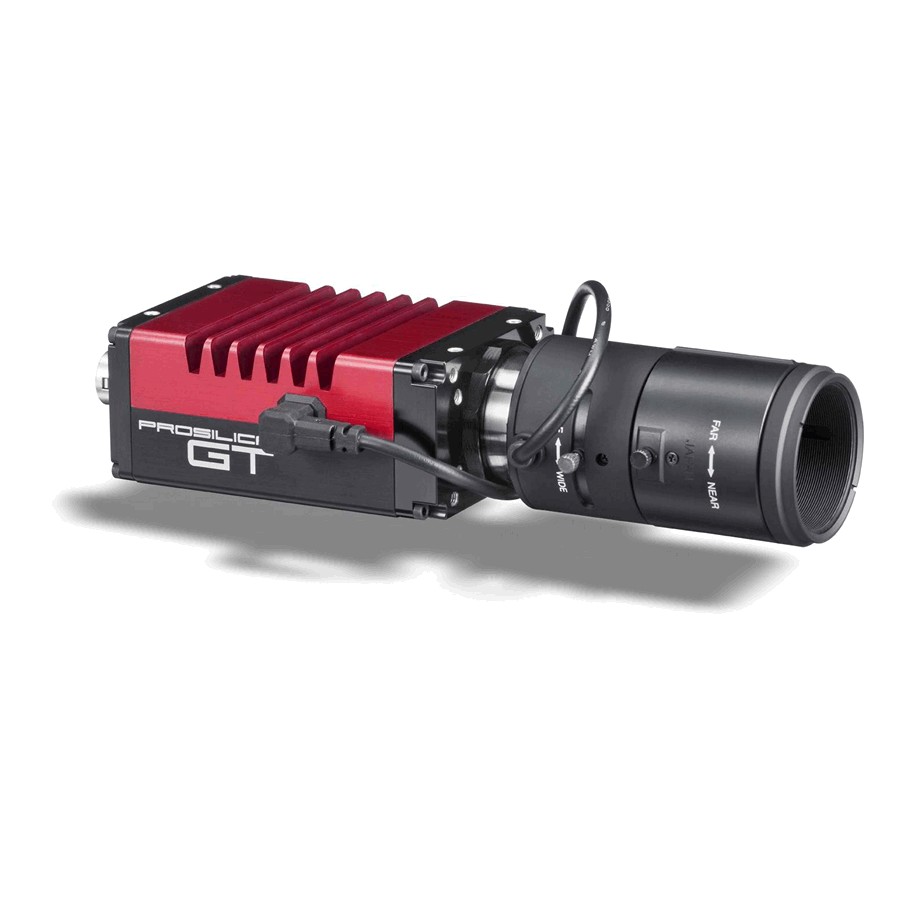

Prosilica GT2300 is a 4.1 Megapixel camera with a GigE Vision compliant Gigabit Ethernet port and
Hirose I/O port. Prosilica GT2300 is offered in both monochrome and color models. This camera
incorporates the high-quality ON Semiconductor KAI-04050 TRUESENSE CCD sensor providing excellent
monochrome and color image quality. At full resolution, this camera runs 29.3 frames per second. With
a smaller region of interest, higher frame rates are possible. It is a rugged camera designed to operate
in extreme environments and fluctuating lighting conditions. This camera offers Precise iris lens control
allowing users to fix the aperture size to optimize depth of field, exposure, and gain without the need for
additional control elements. By default monochrome models ship with no optical filter and color models
ship with an IRC30 IR cut filter.
Also known as
Image sensor size : Type 1
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 4 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : No
Streaming : No
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 32 fps
USB 2 connector : No
PoE : Yes
Camera Link (CL) : No
