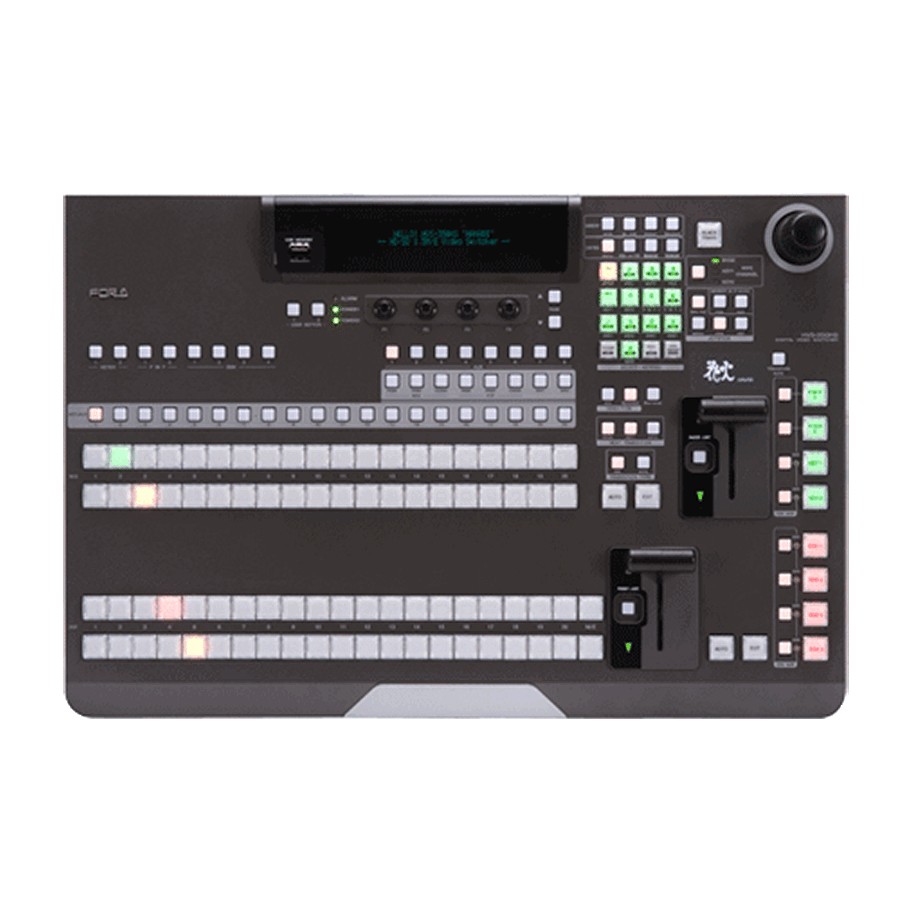

The For-A HVS-350HS Type B 1.5 M/E Switcher supports 8 HD/SD-SDI inputs and 8 HD/SD-SDI outputs, and comes with the HVS-35ROU 1.5 M/E 12 Button Panel. It enables frame synchronizer function for each input, which allows for switching of asynchronous signals. Offering a re-size engine (expansion) on 4 of the 8 standard inputs, the unit enables mixing of SD and HD environment with a switcher alone. The re-size engine allows re-sizing SD signals and PC video, and reduces the need of an external device such as an up-converter.

Equipped with 2 keyer channels that have chroma key function, the HVS-350HS Type B 1.5 M/E Switcher also offers 4 DSK channels. The keyer and DSK have dedicated 2D DVE that allows for adding scale effects or other 2D effects.

Enabling a maximum of 24 inputs and 12 outputs, the HVS-350HS Type B 1.5 M/E Switcher supports 2 channels with multi-viewing function that is capable of displaying up to 16 splits. The 4 still store channels enable transferring of the externally created data to the main unit via Ethernet.

When connected to the HVS-35OU/35ROU/30OU, the HVS-350HS Type B 1.5 M/E Switcher supports USB memory. The backup function allows you to store and read the internally stored data. The HVS-350HS Type B 1.5 M/E Switcher supports 2 channels of dedicated Picture-in-Picture (P-in-P) circuits that allow the picture to be enlarged, shrunk, repositioned, cropped, or given a border.
