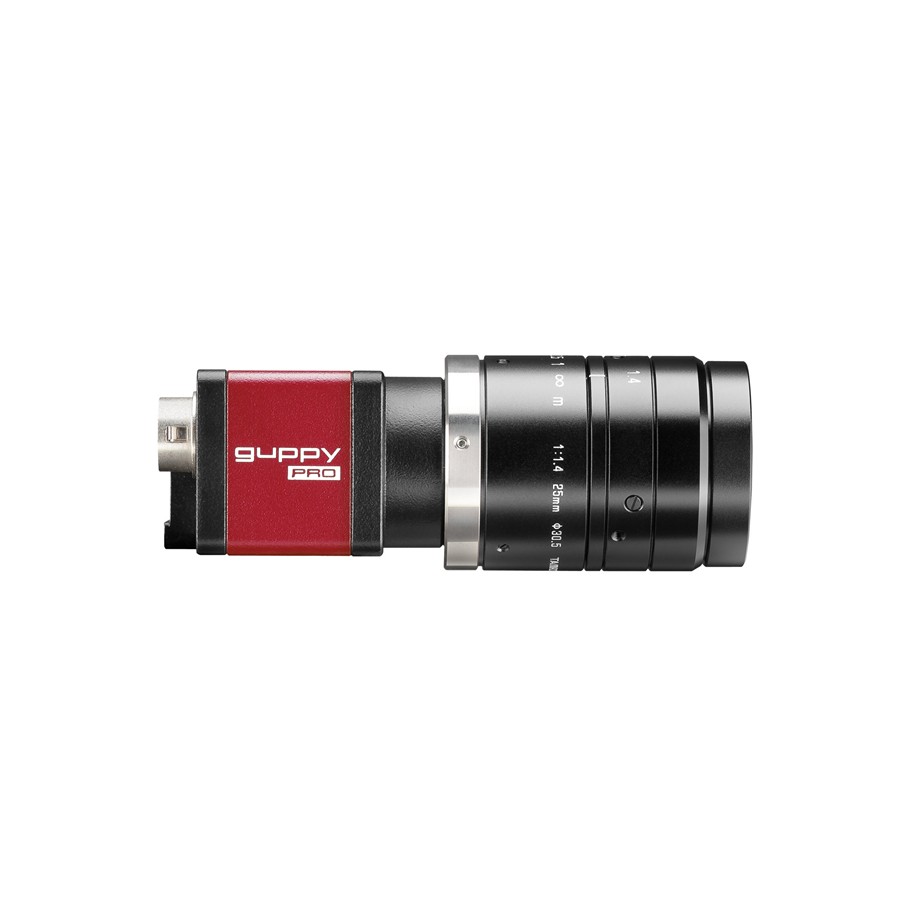

Allied-Vision Guppy Pro F-046B.pdf
The Guppy is a very small, lightweight, inexpensive industrial FireWire camera. Guppy cameras are equipped with a large variety of renowned CCD and CMOS sensors by Sony and Micron/Aptina - the versatile Guppy series provides the right camera for almost all kinds of applications. Two interlaced models with ultra sensitive sensors (Guppy F-038B/C and F-044B/C) ensure an easy, cost-effective move from analog to digital cameras. On request, board level versions are available.
Also known as
Image sensor size : 1/2 inch
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 780 x 580
3D Video Support : No
Ethernet, GigE (RJ45) : No
Infra Red support (IR,NIR) : Yes, Various IR cut/pass filters
Streaming : Yes
Firewire (IEEE1394) connector : Yes
Max video frame rate (fps) : 62 fps
USB 2 connector : No
PoE : Not supported
Camera Link (CL) : No
