Allied-Vision Prosilica GT1660.pdf

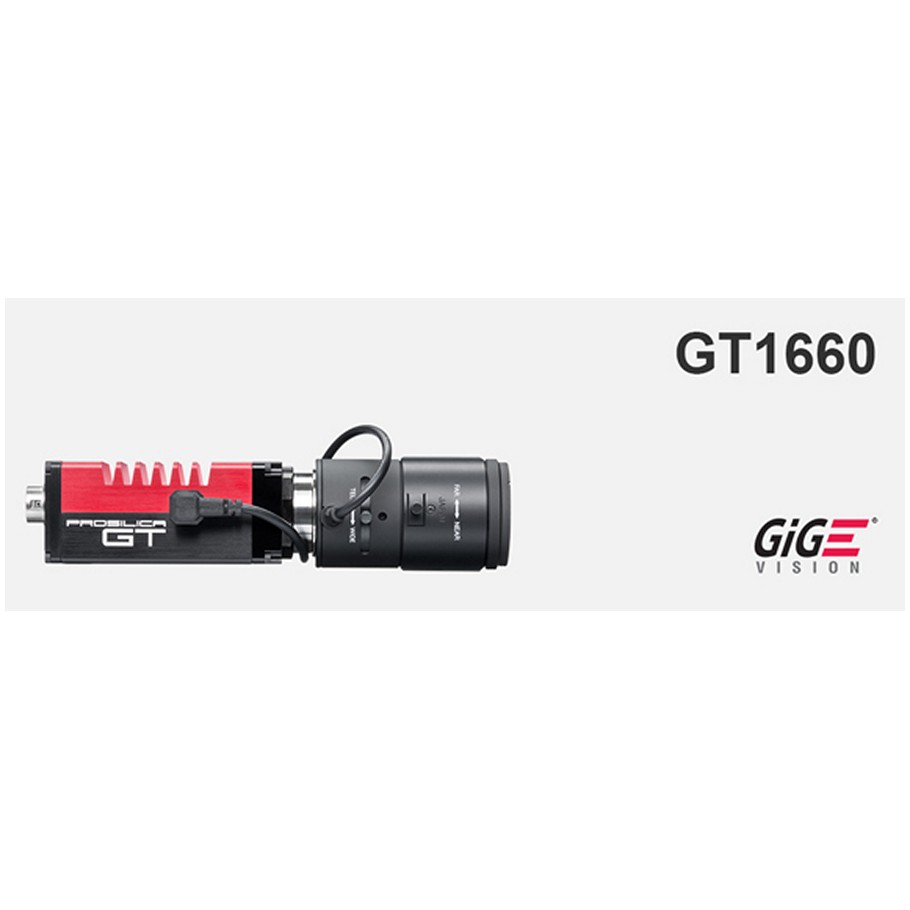

Prosilica GT1660 is a 1.9 Megapixel camera with a GigE Vision compliant Gigabit Ethernet port and Hirose I/O port. Prosilica GT1660 is offered in both monochrome and color models. This camera incorporates the high-quality ON Semiconductor KAI-02050 TRUESENSE CCD sensor providing excellent monochrome and color image quality. At full resolution, this camera runs 62.1 frames per second. With a smaller region of interest, higher frame rates are possible. It is a rugged camera designed to operate in extreme environments and fluctuating lighting conditions. This camera offers Precise iris lens control allowing users to fix the aperture size to optimize depth of field, exposure, and gain without the need for additional control elements. By default monochrome models ship with no optical filter and color models ship with an IRC30 IR cut filter.
Benefits and features:
Monochrome (GT1660) and color (GT1660C) models
GigE Vision interface with Power over Ethernet
Screw mount RJ45 Ethernet connector for secure operation in industrial environments
Supports cable lengths up to 100 meters (CAT-5e or CAT-6)
Trigger over Ethernet (ToE) Action Commands allow for a single cable solution to reduce system costs
Comprehensive I/O functionality for simplified system integration
Popular C-Mount lens mount
Easy camera mounting via standard M3 threads or optional tripod adapter
Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third party image-processing libraries.
Defect pixel column masking feature with the Load Defect Tables tool that allows you to manage a user defined defective pixel list to match your application and optimize the life cycle of the camera.
Options:
Available with CS-Mount, F-Mount, EF-Mount Birger, M42-Mount
Available with IR cut filter or protection glass
Also known as
Image sensor size : Type 2/3
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 2 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : No
Streaming : Yes
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 62 fps
USB 2 connector : No
PoE : Yes
Camera Link (CL) : No
