Allied-Vision Prosilica GT2050C.pdf

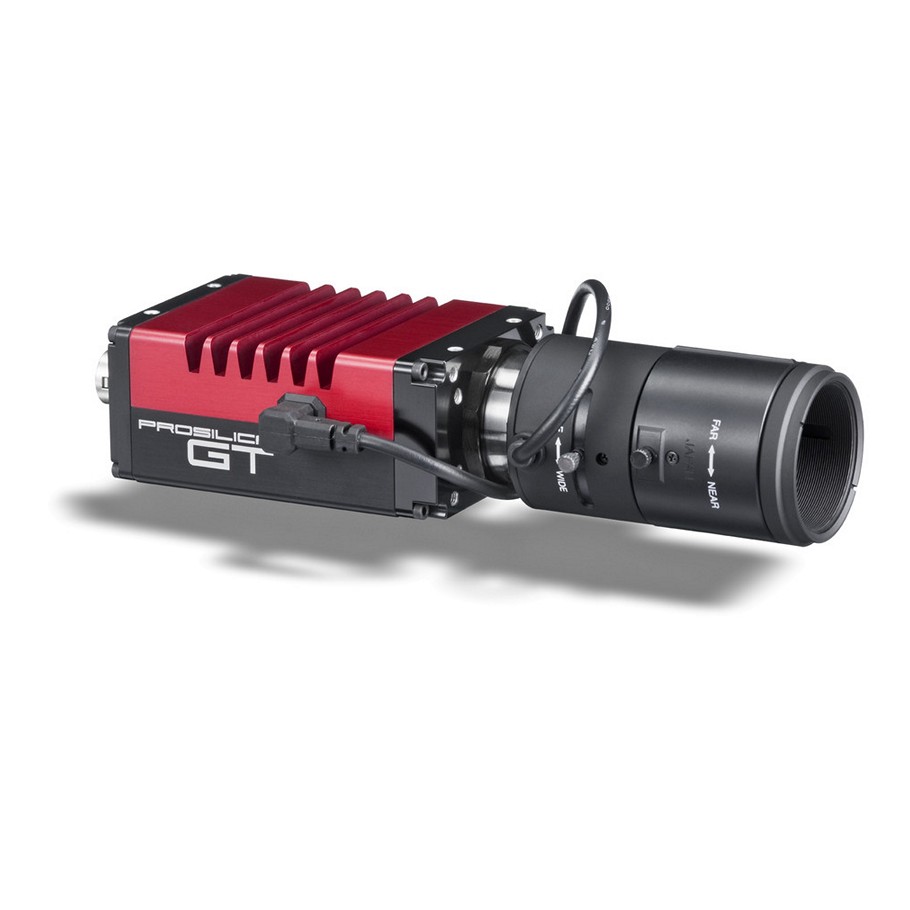

The Prosilica GT2050 is a 4 Megapixel camera with a Gigabit Ethernet interface (GigE Vision®). The GT2050 is a rugged camera designed to operate in extreme environments and fluctuating lighting conditions. It offers Precise iris lens control allowing users to fix the aperture size to optimize depth of field, exposure and gain without the need for additional control elements. The GT2050 incorporates the new CMOSIS CMV-4000 sensor.
CMOSIS CMV4000 sensor
Auto Iris (P-Iris and DC)
Power over Ethernet (PoE)
Ethernet surge suppression
Gamma, multiple LUT, color correction
Metadata (Chunk data), clock synchronization (IEEE1588)
Wide operating temperature range
Global shutter (digital shutter)
Models:
GT2050, 2048 x 2048, 28 fps, CMOSIS mono
GT2050C, 2048 x 2048, 28 fps, CMOSIS color
Also known as
Image sensor size : Type 1
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 4 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : No
Streaming : Yes
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 28.6 fps
USB 2 connector : No
PoE : Yes
Camera Link (CL) : No
