Allied-Vision Prosilica GT6600.pdf

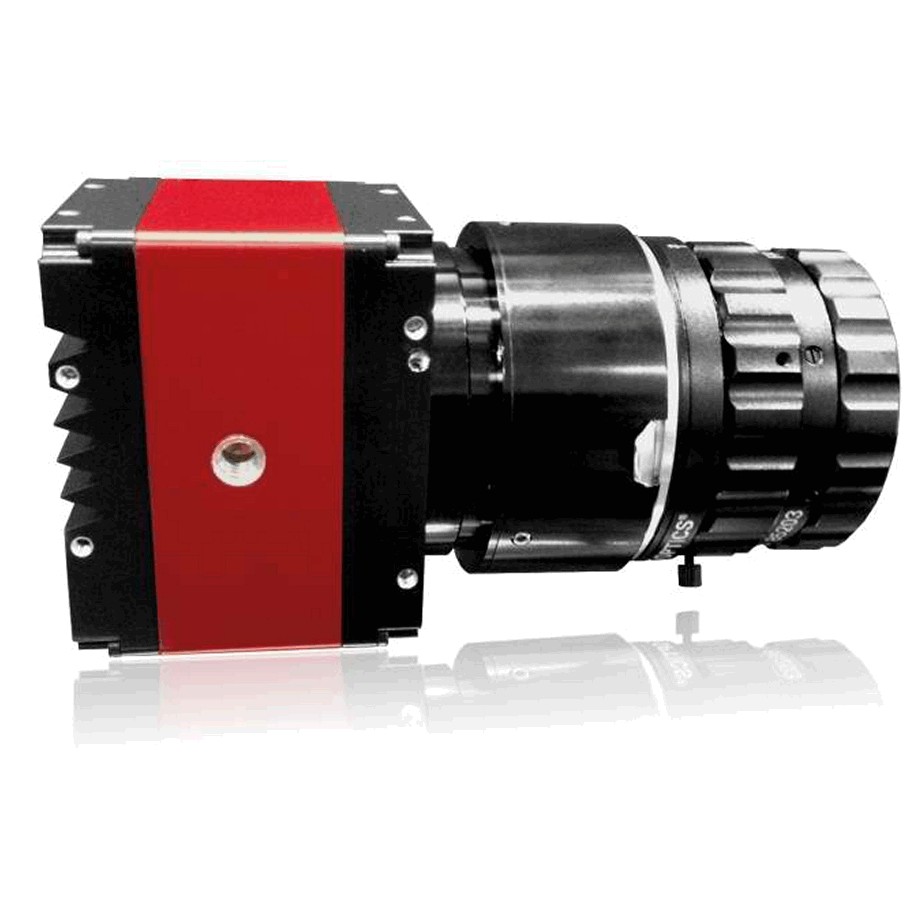

Prosilica GT6600 is a 28.8 Megapixel camera with a GigE Vision compliant Gigabit Ethernet port and
Hirose I/O port. This camera incorporates the high quality ON Semiconductor KAI-29050 TRUESENSE
Gen 2 CCD sensor providing excellent monochrome and color image quality. At full resolution, this
camera runs 4 frames per second. With a smaller region of interest, higher frame rates are possible. It is
a rugged camera designed to operate in extreme environments. It is a large format housing camera with
a standard F-Mount lens mount. By default monochrome models ship with no optical filter and color
models ship with an IRC30 IR cut filter.
Benefits and features:
• Monochrome (GT6600) and color (GT6600C) models
• GigE Vision interface with Power over Ethernet
• Screw mount RJ45 Ethernet connector for secure operation in industrial environments
• Supports cable lengths up to 100 meters (CAT-5e or CAT-6)
• The ON Semiconductor KAI-29050 TRUESENSE Gen 2 is a high sensitivity CCD sensor
• Trigger over Ethernet (ToE) Action Commands allow for a single cable solution to reduce system costs
• Comprehensive I/O functionality for simplified system integration
• Planarity adjustable (PA) EF Lens Mount (option -18) for electronic control of aperture and autofocus
• Easy camera mounting via standard M3 threads at all sides and 1/4-20 tripod mounting hole
• Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third
party image-processing libraries.
• Defect pixel masking feature with the Defect Mask Loader tool that allows you to manage a user
defined defective pixel list to match your application and optimize the life cycle of the camera.
Also known as
Image sensor size : Type 35 mm
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : F-Mount (M58 optional)
Image sensor pixels : 29 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : No
Streaming : Yes
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 4 fps
USB 2 connector : No
PoE : Yes
Camera Link (CL) : No
