Allied-Vision Goldeye P-008 SWIR Cool.pdf

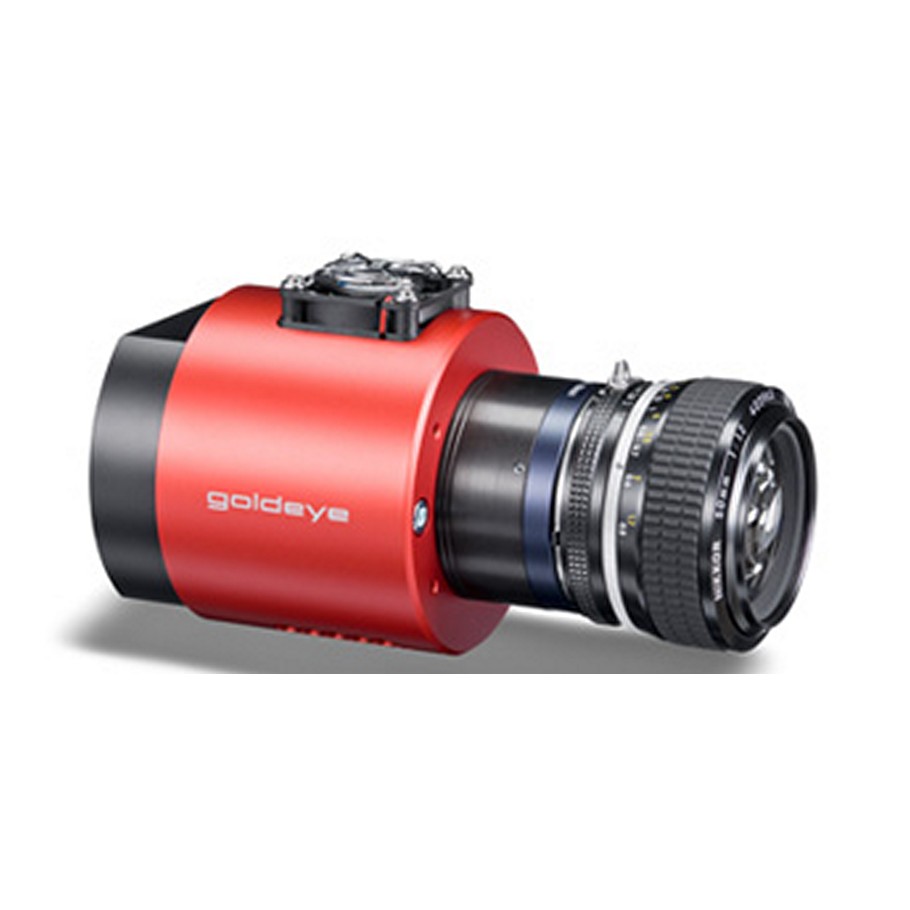

The Goldeye P-008 SWIR is a camera for short-wave infrared applications. It has a spectral response from 900 nm to 1700 nm. Its InGaAs sensor features high sensitivity, very good linearity, and a high damage threshold against intense illumination. The camera is optionally available with Peltier cooling. The Peltier cooling option is recommended for applications with long exposure times, or for exact temperature measurements.
InGaAs sensor, spectral range 900 nm – 1700 nm (SWIR)
30 μm x 30 μm cell size, effective chip size 9.6 mm x 7.68 mm
Excellent Quantum Efficiency at 1.0 μm -1.6 μm
118 fps at full resolution or 186 fps with reduced resolution (320 x 160)
C-Mount, compatible with standard machine vision lenses
GigE Vision, also available with Camera Link interface
Options:
Peltier cooling for long exposure times and exact temperature measurements
Also known as
Image sensor size : No standard size
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 320 x 256
3D Video Support : No
Ethernet, GigE (RJ45) : No
Infra Red support (IR,NIR) : Yes, SWIR, 900 - 1700 nm
Streaming : No
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 118 fps
USB 2 connector : No
PoE : Not supported
