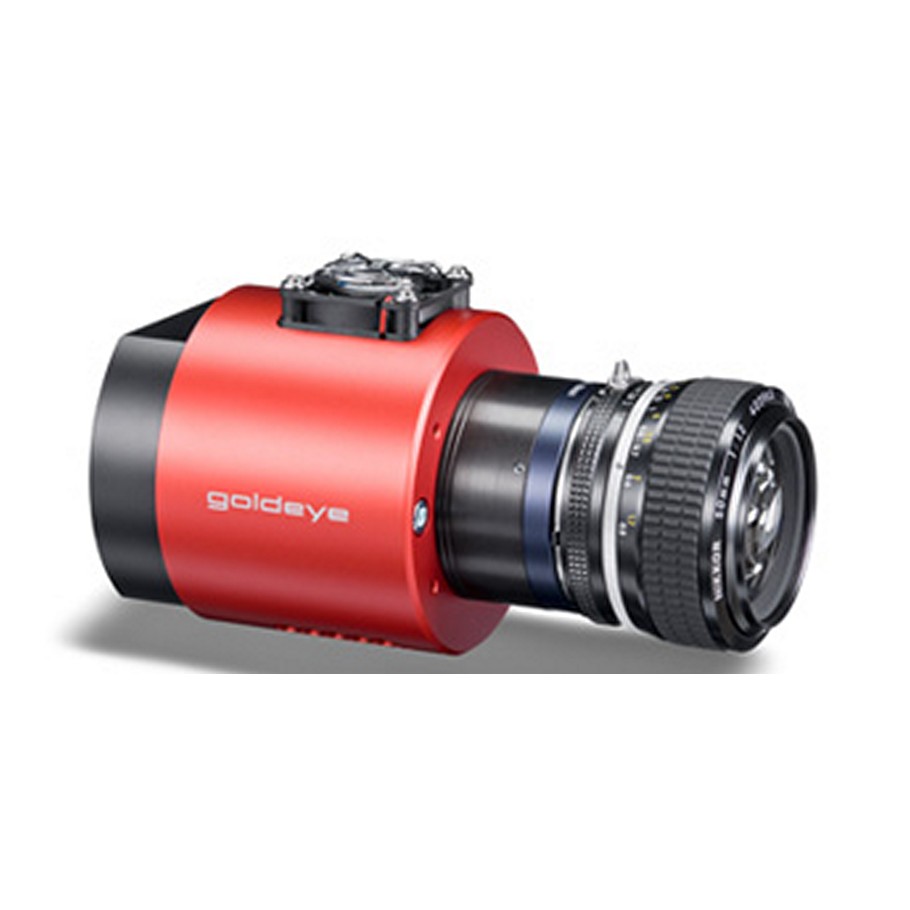

Allied-Vision Goldeye P-032 SWIR F-Mount Cool.pdf
The Goldeye P-032 is an SWIR (short-wave infrared) camera. It has a spectral response from 900 nm to 1700 nm. Its InGaAs sensor features high sensitivity, very good linearity, and a high damage threshold against intense illumination. The camera comes standard with Peltier cooling. The Peltier cooling is ideal for applications with long exposure times, or for exact temperature measurements. The image quality benefits from numerous image preprocessing features.
InGaAs sensor, spectral range 900 nm – 1700 nm (SWIR, short-wave infrared)
25 μm x 25 μm cell size, effective chip size 15.9 mm x 12.7 mm
14-bit digital processing
30 fps (30 Hz)
Peltier cooling for long exposure times and exact temperature measurements
GigE Vision, also available with Camera Link interface
Options
C-Mount or F-Mount
Also known as
Image sensor size : No standard size
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : Nikon F-mount
Image sensor pixels : 636 x 508
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : Yes, 900 nm – 1700 nm (SWIR, short-wave infrared)
Streaming : No
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 30 fps
USB 2 connector : No
PoE : Not supported
