Convergent-Design Odyssey7Q.pdf

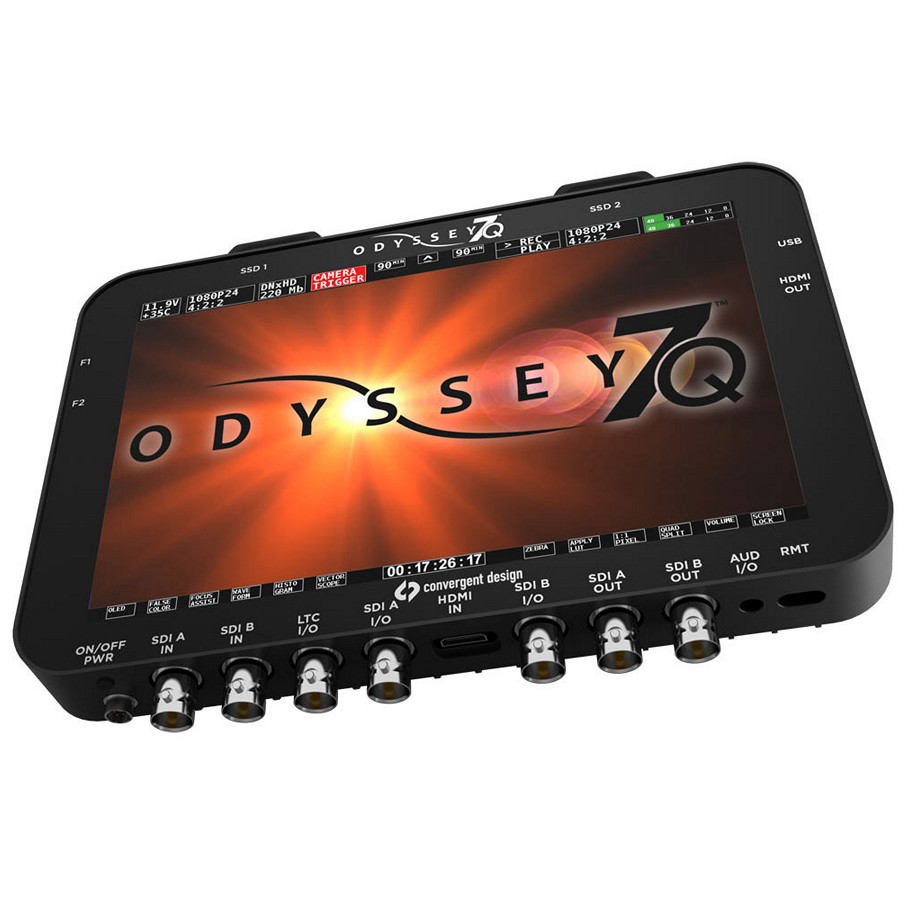

The Odyssey family is a professional 7.7” OLED monitor with high-end monitor features, including Waveform, Zebras, Histogram, Vectorscope, Focus Assist, False Color, Timecode Display and Audio Level Meters, and 1:1 Pixel mode.
Odyssey7 includes HDMI I/O, and SD/HD/3G-SDI I/O; in both single and dual link configurations. As you have come to expect from Convergent Design, Odyssey is low power, lightweight and comes in a rugged magnesium case.
The Odyssey7Q adds two bi-directional SDI’s (2-In, 2-I/O, 2-Out), enabling a 4K@60fps-ready option. Additional computational power supports recording/playback of up to four-compressed HD/2K simultaneously, support for one video stream up to 120fps and concurrent proxy and raw recording. Odyssey7Q includes a built-in Quad Splitter and Four-Channel Live Switcher.
Also known as
Permanent Installation : No
4Κ support : Yes
HDMI,DVI Input : 1 Input
Monitor size : 7.7 Inches
3D Video Support : No
HD-SDI Input : 4 Inputs
SD-SDI Input : 4 Inputs
USB 2 connector : Yes
Waveform/Vectroscope : Yes
Touch screen : Yes
RS232/422 connector : Yes
Monitor type : OLED
Max Resolution : 1280x800 WXGA
Contrast : 3.400:1 Contrast, 176 Viewing, True Blacks
