Allied-Vision Manta G-419B NIR PoE.pdf

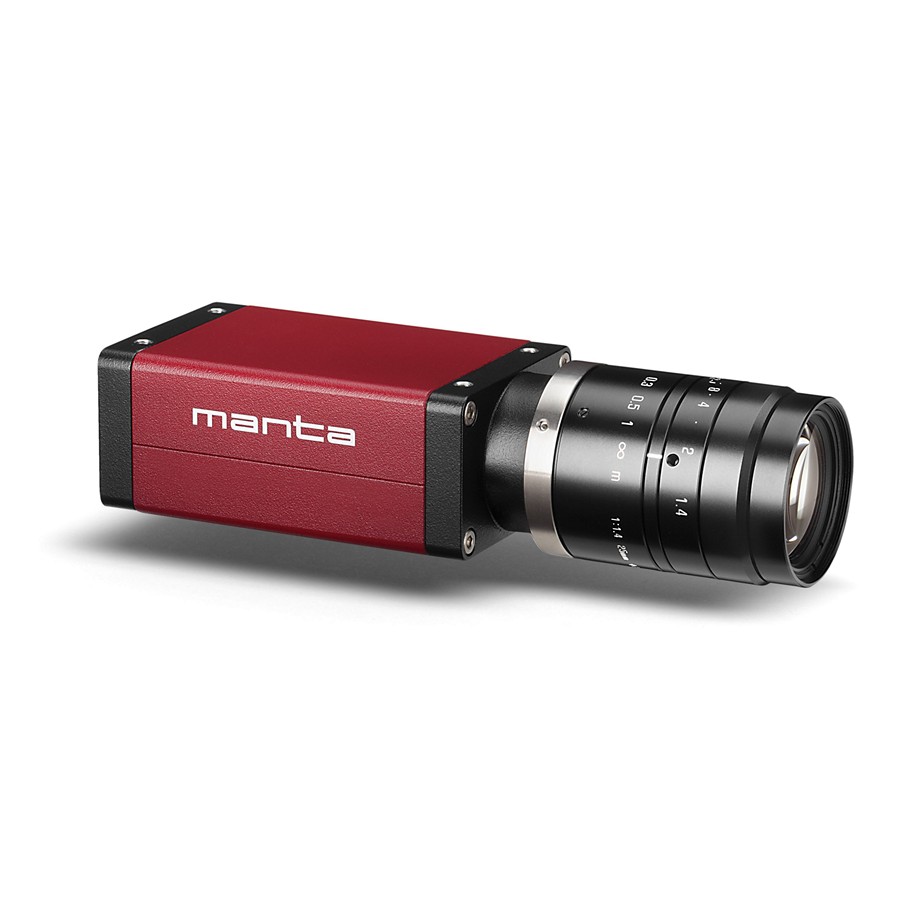

The Manta G-419B NIR includes an 1inch CMOSIS CMV4000 sensor. At full resolution, it runs 25 fps.
CMOSIS CMV4000 (type 1), 4.2 Megapixels
Sync modes
Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO
Trigger
External trigger event: rising/falling/any edge, level high/low
External trigger delay: 0 to 60 s in 1 µs increments
Modular options
Various IR cut/pass filters
Board level version
Angled head
White medical housing
PoE (Power over Ethernet)
Also known as
Image sensor size : 1 inch
Image sensor type : CMOS Progressive
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 4.1 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : Yes, NIR
Streaming : No
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 25 fps
USB 2 connector : No
RS232/422 connector : Yes, RS232
PoE : Yes
Camera Link (CL) : No
CoaxPress (CxP) connector : No
USB 3 connector : No
