Allied-Vision Prosilica GT2000NIR.pdf

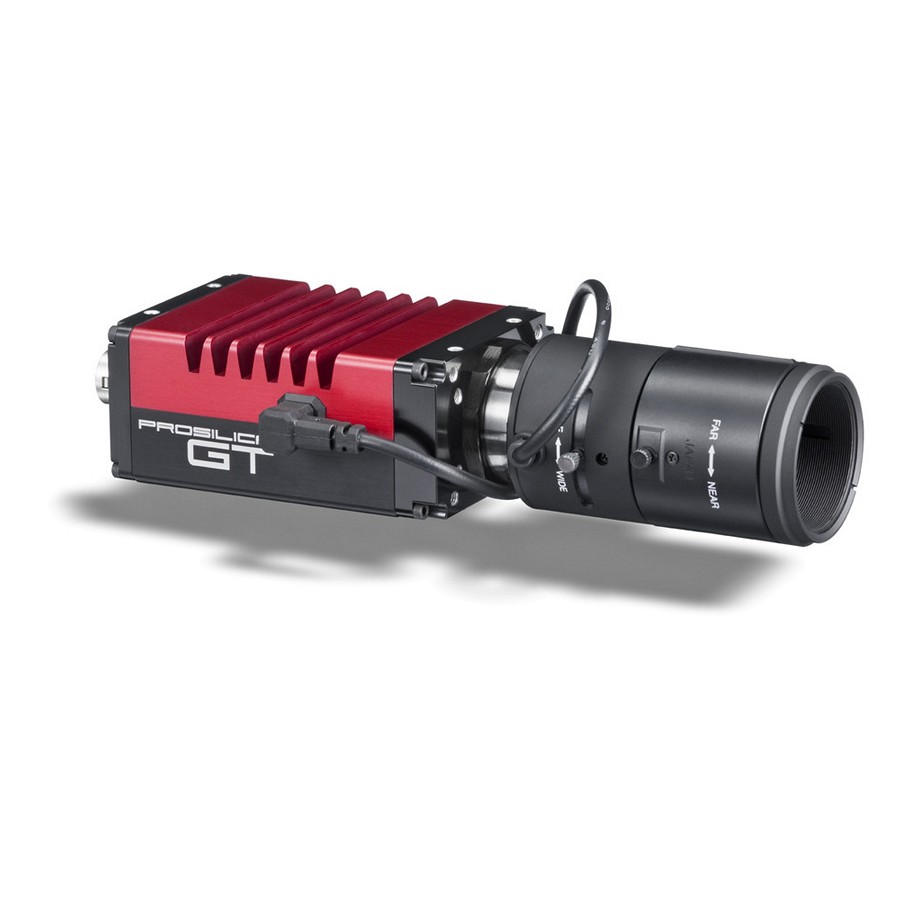

Prosilica GT2000NIR is a 2.2 Megapixel camera with a GigE Vision compliant Gigabit Ethernet port
and Hirose I/O port. This camera incorporates a NIR-optimized variant of the high-quality CMOSIS/
ams CMV2000 CMOS sensor. At 900 nm this sensor offers double the quantum efficiency, an increase
from 8% to 16% absolute. At full resolution, this camera runs 53.7 frames per second. With a smaller
region of interest, higher frame rates are possible. It is a rugged camera designed to operate in extreme
environments and fluctuating lighting conditions. This camera offers Precise iris lens control allowing
users to fix the aperture size to optimize depth of field, exposure, and gain without the need for
additional control elements. By default NIR models ship with no protection glass or filter.
Also known as
Image sensor size : 2/3 inch
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C (adjustable)
Image sensor pixels : 2.2 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : Yes, NIR
Streaming : No
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 53.7 fps
USB 2 connector : No
PoE : Not supported
Camera Link (CL) : No
Allied-Vision 02-5031B
Field Kit, Motorized Canon EF-Mount for Prosilica GT or GX, F-Mount, RS232 lens control
