Allied-Vision Prosilica GT2050NIR.pdf
Megapixel CMOS NIR enhanced camera for extreme environments - fast frame rates

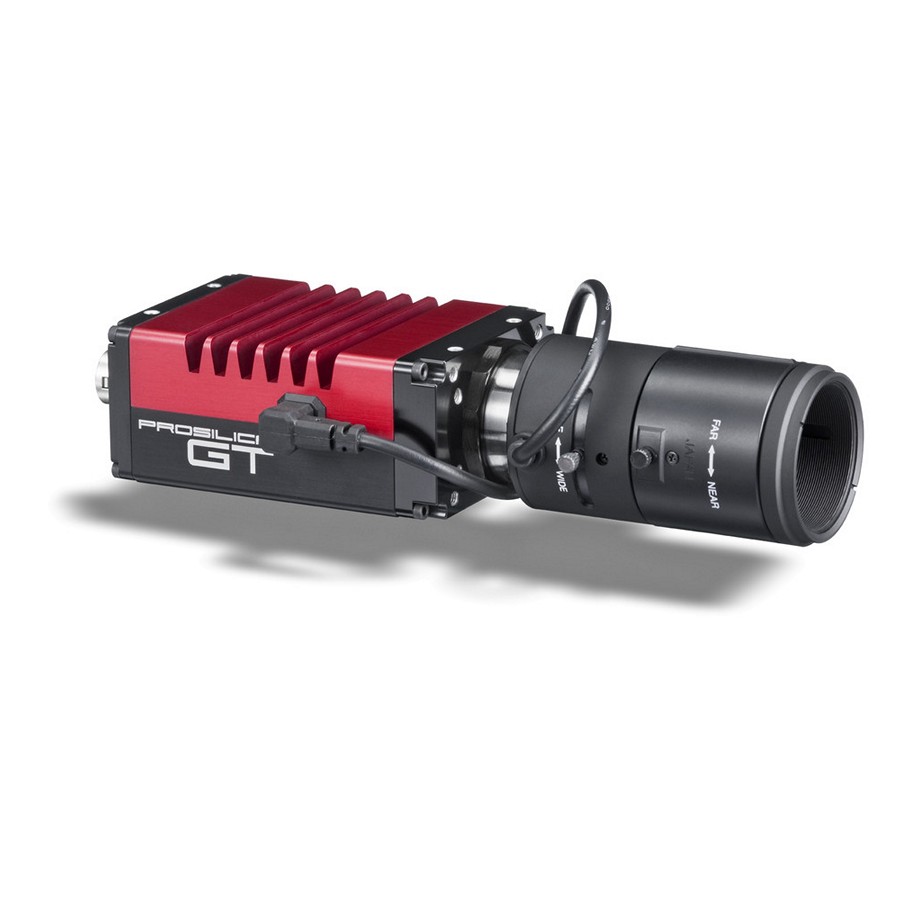

The Prosilica GT2050 NIR is a 4 Megapixel camera equipped with a NIR optimized variant of the CMOSIS CMV4000 sensor. At 900 nm this sensor offers double the quantum efficiency, an increase from 8% to 16% absolute. The GT2050 NIR is a rugged camera designed to operate in extreme environments and fluctuating lighting conditions. It offers Precise iris lens control allowing users to fix the aperture size to optimize depth of field, exposure and gain without
the need for additional control elements.
l CMOSIS CMV4000 sensor: NIR variant
l Auto Iris (P-Iris and DC)
l Power over Ethernet (PoE)
l Ethernet surge suppression
l Gamma, multiple LUT, color correction
l Metadata (Chunk data), clock synchronization (IEEE1588)
l Wide operating temperature range
l Global shutter (digital shutter)
Also known as
Image sensor size : 1 inch
Image sensor type : CMOS
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 4.1 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : Yes,NIR
Streaming : No
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 28.6 fps
USB 2 connector : No
RS232/422 connector : Yes, RS232
PoE : Yes,PoE
Camera Link (CL) : No
CoaxPress (CxP) connector : No
USB 3 connector : No
