6.300,00€
5.670,00€ + VAT Request lower price Interest form

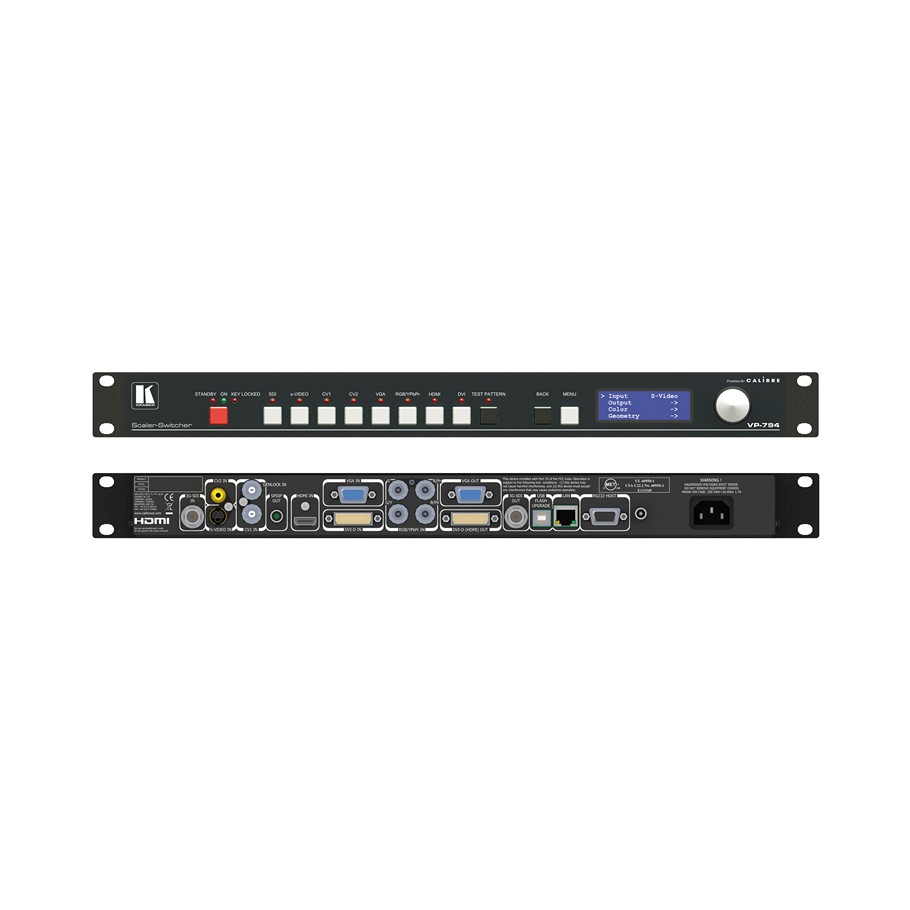

The VP-794 is multi-input scaler, designed for scaling, scan conversation, professional edge-blend and warping of video content on to projection and LED video wall displays as well as for general purpose events and broadcast scaling. The VP-794 can be switched between LED, projection or scaler/scan converter modes, greatly appealing to rental and staging providers as it permits a single model to be held in an inventory.
The VP-794 is based on HQView architecture, optimized for low latency scaling to arbitrary active image sizes. The VP-794 features powerful dual-processor architecture with 16-bit professional-grade blend processing with de-gamma, post-warp blending for optimal blend and warp performance and curved screen warping. It can capture a live image for display as a still, for example a customer logo screen or backdrop, which the device can scale, warp and blend this captured image.
The VP-794 offers control per input channel RGB, brightness/contrast/saturation/hue controls, including on digital and computer graphics inputs. Video inputs include HDMI, DVI, VGA, component, composite and YC/S-video, as well as 3G-SDI inputs and separate genlock.
Audio pass-through and de-embed is achieved from 3G-SDI and HDMI to 3G-SDI, HDMI and SPDIF.
The VP-794 has a built-in test pattern generator including SMPTE bars, pluge, aspect ratio test, greyscale as well as custom downloadable test patterns that are accessible via Web browser interface.
Also known as
Permanent Installation : Yes
4Κ support : Yes
Analog video input (AV,Component) : 3 Inputs, 2 Composite, 1 Y-C
HDMI,DVI Output : 1 Output DVI
Balanced Audio Input (XLR) : No
HD-SDI Output : No
HDMI,DVI Input : 2 Inputs, HDMI and DVI
Analog video out (AV,Component) : No
Weight : 2.5 Kg
Balanced Audio output (XLR) : No
3D Video Support : No
HD-SDI Input : 1 Input SD-HD-3G HD-SDI on a BNC connector
Chromakey : No
Ethernet, GigE (RJ45) : Yes, TCP-IP API and Web Server
Streaming : No
SD-SDI Output : No
SD-SDI Input : No
Firewire (IEEE1394) connector : No
USB 2 connector : Yes, for Programming
RS232/422 connector : Yes, RS232
Input twisted pair (TP) : No
Output twisted pair (TP) : No
Fiber optics Input : No
Fiber optics Output : No
DisplayPort Input : No
DisplayPort Output : No
HDCP copy protection : Yes
