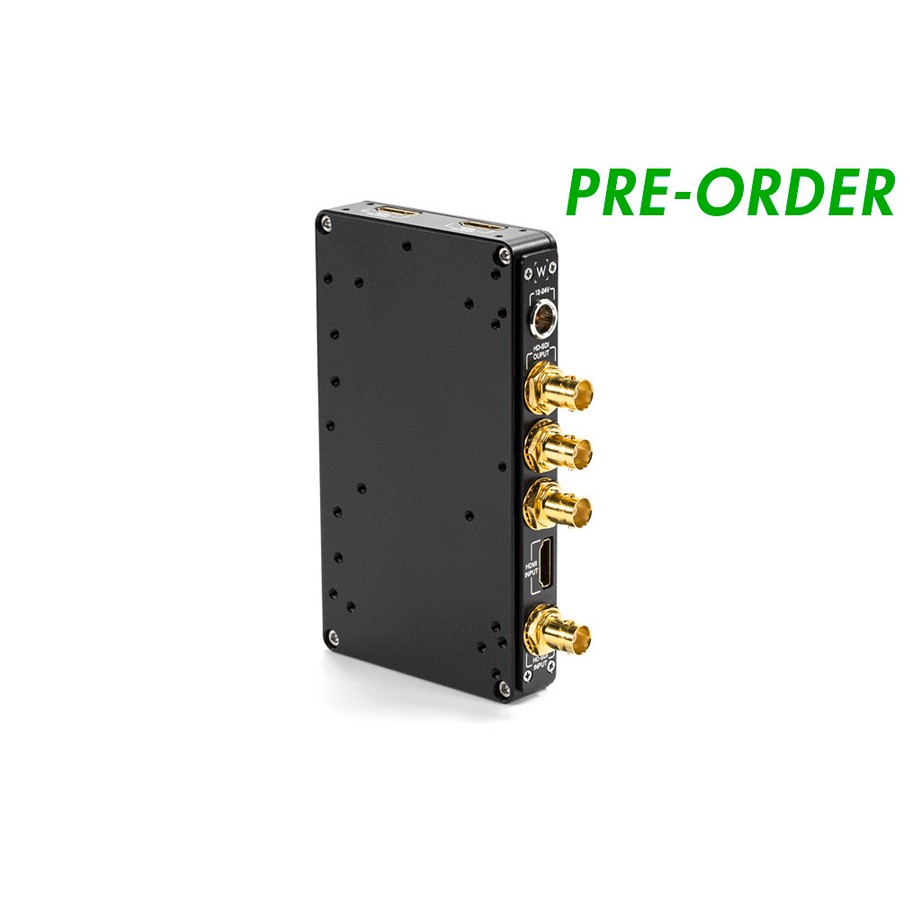

C-Box (Converter, D-Tap) accepts HDMI and 3G HD-SDI input, selectable via switch on operators side, and outputs simultaneously three channels of HD-SDI and two of HDMI. The device draws power from the D-Tap of a battery or battery plate using the included cable. Each video output is independently reclocked and carries the same signal strength as the original. LED indicators are located on the operators side to show status of power and signal.
This version attaches between any V-Mount or QRC-style Gold Mount and wherever the plate was attached previously. For example, the C-Box (Converter, D-Tap) can fit between the WC V-Mount (Epic/Scarlet) and the Quick Back v2. Another example would be attaching it between the WC Gold Mount (BMC) and the Battery Slide.
Also known as
4Κ support : No
Analog video input (AV,Component) : No
HDMI,DVI Output : 2 Outputs
Balanced Audio Input (XLR) : No
HD-SDI Output : 3 Outputs
HDMI,DVI Input : 1 Input
Analog video out (AV,Component) : No
Balanced Audio output (XLR) : No
3D Video Support : No
HD-SDI Input : 1 Input
Chromakey : No
Ethernet, GigE (RJ45) : No
SD-SDI Output : 3 Outputs
SD-SDI Input : 1 Input
Firewire (IEEE1394) connector : No
USB 2 connector : Yes, mini-USB
Waveform/Vectroscope : No
RS232/422 connector : No
Digital audio AES/EBU : No
Fiber optics Input : No
Fiber optics Output : No
