Wooden-Camera 176300 | C-Box (Converter, V-Mount)

Wooden-Camera 176300 | C-Box (Converter, V-Mount)
Brand Wooden-Camera

798,86€
758,92€ + VAT Request lower price Interest form

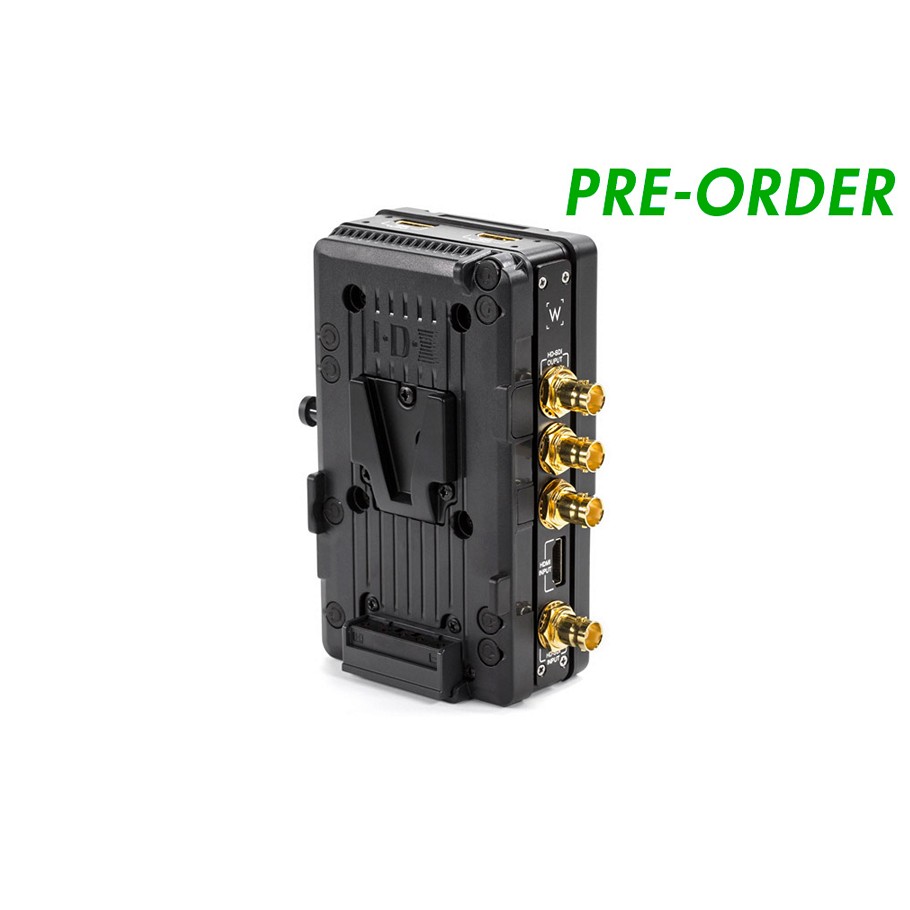

C-Box (Converter, V-Mount) accepts HDMI and 3G HD-SDI input, selectable via a switch on the operator-s side, and simultaneously outputs three channels of HD-SDI and two of HDMI. The device draws power internally from the male V-Mount plate attached and passes power through to the camera via the female V-Mount plate on the other side. The male V-Mount plate has an additional D-Tap output for accessory power. Each HD-SDI output is independently reclocked and carries the same strength as the original signal. LED indicators are located on the operator-s side to show status of power and signal. 5V Mini USB port on operator-s side for powering wireless transmitters like Paralinx, IDX Cam-Wave, etc.

This version attaches between any V-Mount plate and V-Mount battery. For example, the C-Box (HD-SDI, V-Mount) can fit between the Blueshape BV090 Battery and the WC V-Mount (Epic/Scarlet). Another example would be attaching it between the Blueshape BV090 Battery and the WC V-Mount (BMC).

Also known as

176300

(176300)

TECHNICAL SPECS

4Κ support : No

Analog video input (AV,Component) : No

HDMI,DVI Output : 2 Outputs

Balanced Audio Input (XLR) : No

HD-SDI Output : 3 Outputs

HDMI,DVI Input : 1 Input

Analog video out (AV,Component) : No

Balanced Audio output (XLR) : No
