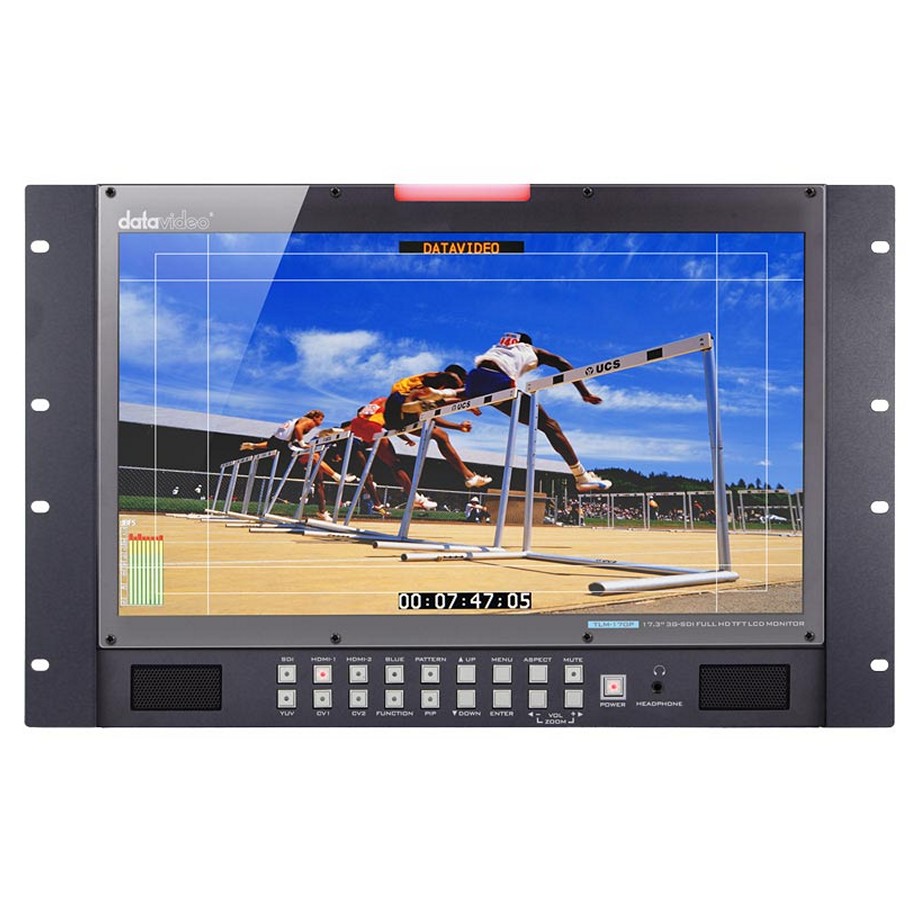

7U Rackmount Unit. 17.3inch FULL HD 1080p LCD Panel with Underscan and Overscan menu options.
Digital Video Inputs: SD/HD-SDI with loop thru and 2x HDMI.
Digital Audio Inputs: via SDI or HDMI inputs.
Analogue Video Inputs: Component [ Y,Pb,Pr ], Composite x2 with loop thru.
Mono Audio Inputs: Single RCA phono socket for analogue inputs.
Head phone 3.5mm stereo jack socket for discrete audio monitoring.
Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect Ratio, Blue only, Pattern ( Colour Bars ), Menu and audio controls.
Colour temperature menu option has 3 modes (6500K, 9300K and user defined). OSD audio level peak meter for SDI and HDMI based digital audio inputs.
On screen overlays for frame marker 80%, 90%, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title.
Bi-colour Tally light [Red or Amber] and 3.5mm Jack Tally input socket. Analogue Audio external speaker outputs L-, L+ and R-, R+ [Max 5v p - p (2w)]. RJ-45 TCP/IP connection allows remote set up of the monitor using a PC / Mac based browser. USB 2.0 port for easy update of firmware with a USB 2.0 pen drive.
Also known as
Permanent Installation : Yes
4Κ support : No
Analog video input (AV,Component) : Component [ Y,Pb,Pr ], Composite x2 with loop thru.
Balanced Audio Input (XLR) : No
HDMI,DVI Input : 2 Inputs
Monitor size : 17.3 Inches
3D Video Support : No
HD-SDI Input : SD-HD-SDI with loop thru
SD-SDI Input : SD-HD-SDI with loop thru
Waveform/Vectroscope : No
Touch screen : No
Monitor type : LCD/TFT
Max Resolution : 1920x1080 FHD
