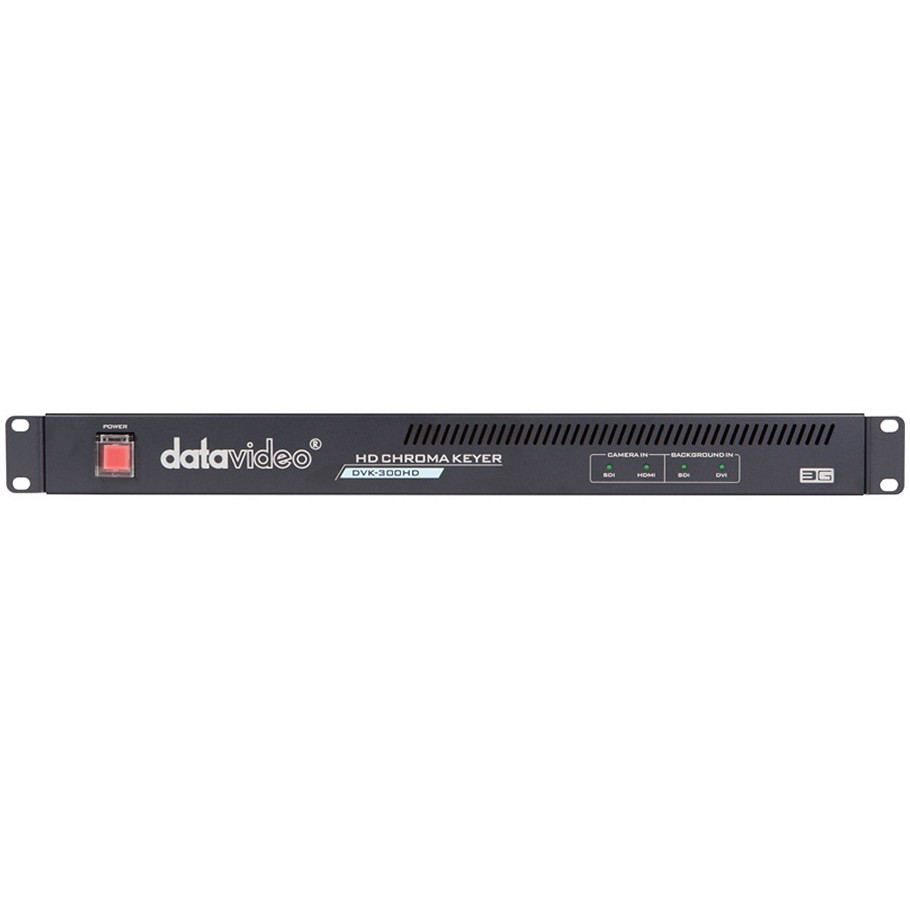

The DVK-300 HD Chromakey accepts HD or SD video to create beautiful chromakeys using a colored background. This PC-controlled solution features key noise reduction, color spill processing, edge control, and more.
Fitting into HDMI and SDI-based live environments, the keyer supports SD and HD resolutions up to 1080P.
It includes a simple-to-use wizard to assist in setting up chromakeys quickly and accurately. DVK-300 has HD/SD-SDI and HDMI for the foreground inputs and HD/SD-SDI and DVI-I for the background inputs. For outputs, the DVK-300 has HD-SDI and HDMI to show the matte out, and HD-SDI for Program out.
The DVK-300HD can be controlled locally using a directly attached laptop or remotely over an IP network.
Specifications
Video Standard
3G/HD/SD
Video Format
1080p (25/30/50/59.94/60 Hz)
1080i (50/59.94/60 Hz)
720p (50/59.94/60 Hz)
480i (NTSC), 576i (PAL)
Autodetect
Foreground Inputs
1x 3G/HD/SD-SDI
1x HDMI (1.4)
Background Inputs
1x 3G/HD/SD-SDI
1x DVI-I
Output
2x 3G/HD/SD-SDI
1x HDMI
Keying Options
Chromakey Green / Blue, Lumakey
Key Mask / Spill Correction / Edge Correction
Yes
Color Processor
Foreground: Brightness, Contrast, Saturation, Ambient Intensity
Noise Reduction
Yes
User Preset
4
Controlled Via
Ethernet/RS-232
Chassis
1RU 19" Rack-mount Design
Dimension (LxWxH)
440 x 125 x 49 mm
Weight
1.8 kg
Power
DC 12V, 2A
Also known as
Permanent Installation : No
4Κ support : No
Analog video input (AV,Component) : No
HDMI,DVI Output : 1xHDMI
Balanced Audio Input (XLR) : No
HD-SDI Output : 2 Outputs
HDMI,DVI Input : 1xHDMI, 1xDVI
Analog video out (AV,Component) : No
Balanced Audio output (XLR) : 1 Output
3D Video Support : No
HD-SDI Input : 2 Inputs
Chromakey : Yes
Ethernet, GigE (RJ45) : Yes
SD-SDI Output : 2 Outputs
SD-SDI Input : 2 Inputs
Firewire (IEEE1394) connector : No
USB 2 connector : No
Waveform/Vectroscope : No
RS232/422 connector : 1xRS-232
Digital audio AES/EBU : No
Fiber optics Input : No
Fiber optics Output : No
