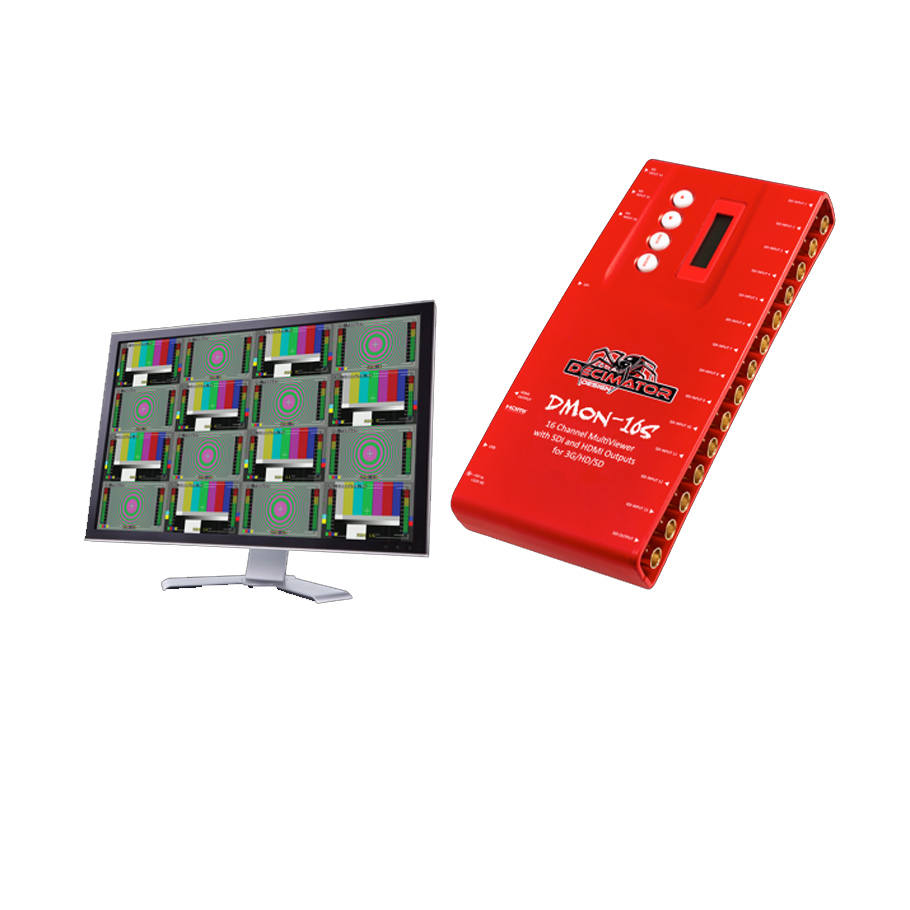

The portable DMON-16S is a 1 to 16 channel multiviewer with SDI and HDMI outputs for 3G/HD/SD, including custom layouts, UMDs, audio meters, graticules and tallies.

Low latency buffering allows non-synchronous inputs, with each independent window able to display any 3G/HD/SD format of any frame rate simultaneously. Multiview layouts are fully customisable, with various standard layouts also available for selection. Positioning and size of the 16 character UMDs and 8 channel audio metering overlays are also customisable. Other features include 32 GPI on 37-pin D-SUB for Tallies and remote switching. RS422/485 is also available on the 37-pin D-SUB for Dynamic UMD and Tallies using TSL protocol.
