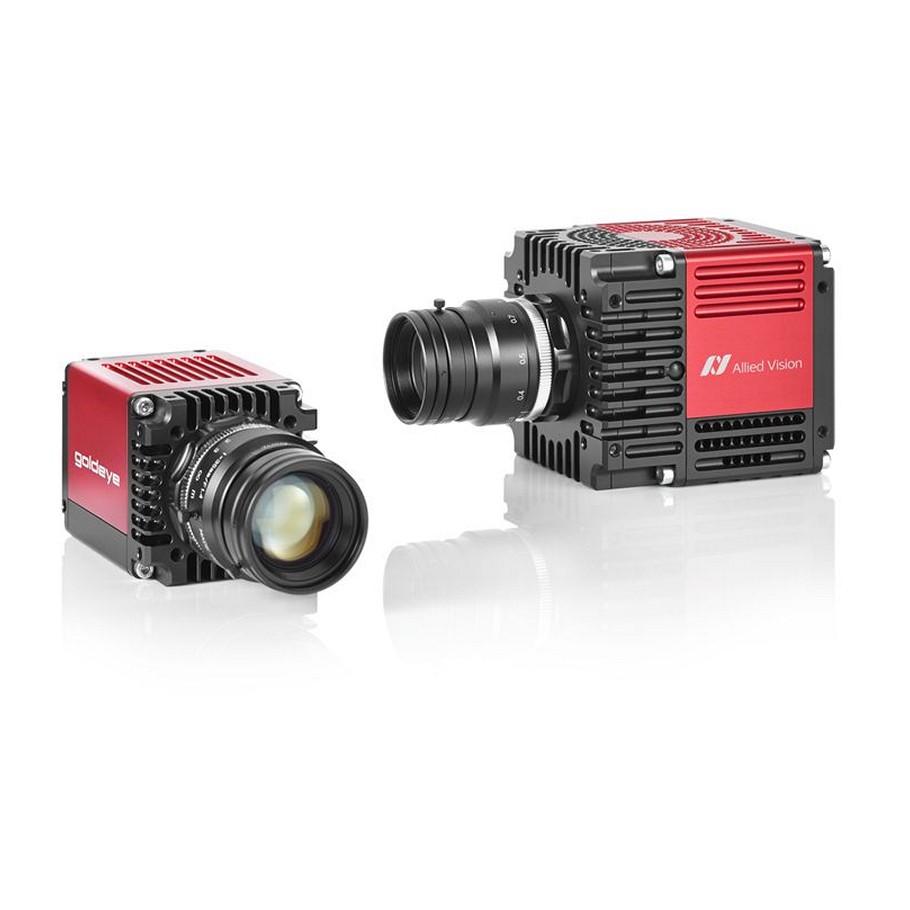

Allied-Vision Goldeye G-033 SWIR TEC1.pdf
The Goldeye G-033 high-speed camera is the fastest VGA resolution short wave infrared camera (SWIR) with GigE Vision interface. Frame rates up to 301 fps at full resolution enable you to access versatile application fields and to speed up your processes.
Save time and money to integrate the camera into your system: A small form factor and multiple mounting options let the camera fit easily into compact system designs. In addition, its standardized GigE Vision interface including Power over Ethernet (PoE) and comprehensive I/O control options simplify the connection to your software solution and the synchronization with other system components.
The integrated thermo-electric sensor cooling and several on-board image correction features contribute to the Goldeye s outstanding image quality.
Also known as
Image sensor size : Other
Image sensor type : InGaAs
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : up to 1 Mpixels
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : Yes
Streaming : No
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 300 fps
USB 2 connector : No
RS232/422 connector : Yes, 115 000 Baud, 8N1 (adjustable)
PoE : Yes
Camera Link (CL) : No
CoaxPress (CxP) connector : No
USB 3 connector : No
Allied-Vision 2815
12-Pin Hirose female to open end, 3.0 m (replacement for 02-6031A,02-6033A,K1200192)
