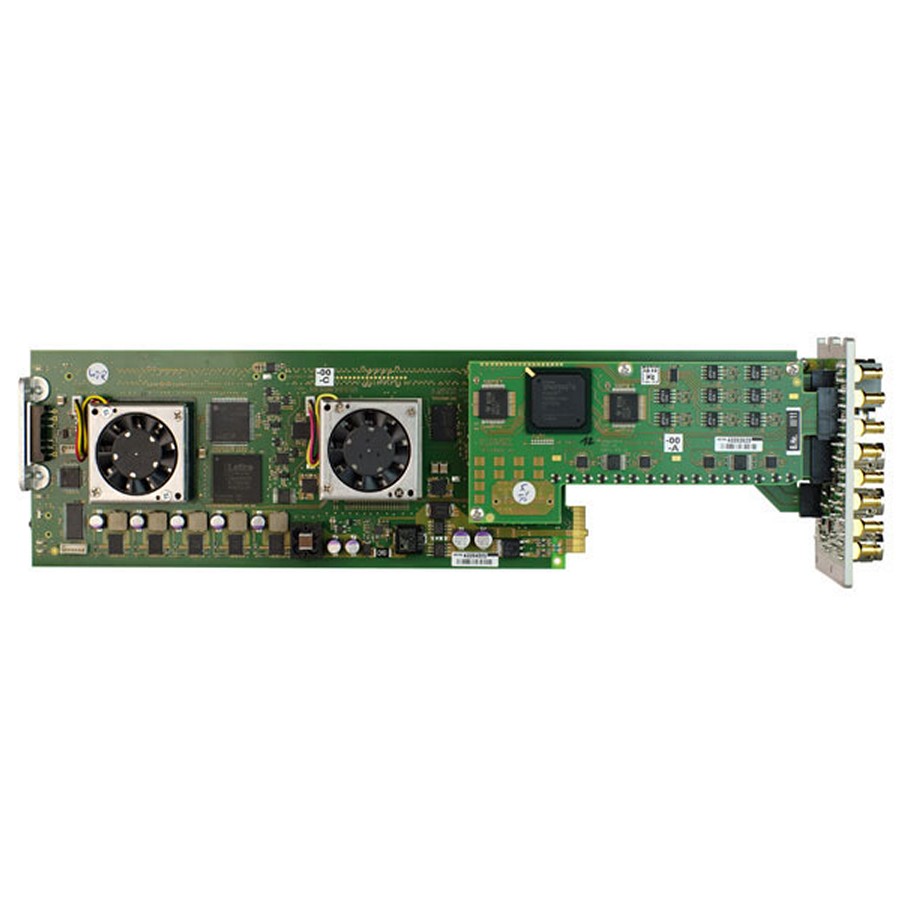

The P VD 5840 FLEXCARD offers a host of advanced functions in a single compact module. It functions primary as a frame synchronizer plus image and audio processor, however it can be custom configured to address a multitude of applications.
The basic module is a single channel multi-format frame synchronizer, providing four output channels each with its own video processor and audio embedder. Internal image processing resources include two ARC channels, a high quality up/down/cross converter, two noise reduction channels and two RBG color correction channels, all of which can be usermapped using the internal signal router.
The audio processing capabilities are extensive. The module de-embeds all audio as well as providing support for eight external AES inputs or outputs. Multiple internal crossbars allow for extensive audio shuffling. The module also includes content aware audio processing, DolbyE synchronization, full audio processing as well as multiple adjustable user delays.
Options include a second input with a second frame synchronizer plus a second up/down/cross converter. There is also an option to support level B (DL) formats and also cross conversion between Level A and Level B. All options are pre-installed and activated through license codes.
The P VD 5840 FLEXCARD is driven using the LYNX APPolo control system, which provides an intuitive graphical visualization for the status, control, monitoring and configuration of the module.
Also known as
Permanent Installation : Yes
4Κ support : No
Analog video input (AV,Component) : No
HDMI,DVI Output : No
Balanced Audio Input (XLR) : No
HD-SDI Output : 8 Outputs
HDMI,DVI Input : No
Analog video out (AV,Component) : No
Balanced Audio output (XLR) : No
3D Video Support : No
HD-SDI Input : 2 Inputs
Chromakey : No
Ethernet, GigE (RJ45) : No
SD-SDI Output : 8 Outputs
SD-SDI Input : 2 Inputs
Firewire (IEEE1394) connector : No
USB 2 connector : No
Waveform/Vectroscope : No
RS232/422 connector : No
Digital audio AES/EBU : Yes
Fiber optics Input : No
Fiber optics Output : No
Lynx OC-5840-UPXD2
OPTION: Second UP/CROSS/DOWN Converter for PVD 5840 O/DO/UO
Starting price
1.080,00€
Lynx RPS 5018
OPTION: 180W High Power Redundant Power Supply for Series 5000 2u Frames (No power cable)
Starting price
432,00€
Lynx RCT 5023-G
OPTION: Rack Controller Board - LAN connection to Control System
Starting price
270,00€
Lynx RFR 5018 EU
19 inch Rack Frame for 10 CardModules with fan front cover + Primary PSU incl. 2 x EU power cords
Starting price
1.090,00€
