pdf Kramer DIP-31.pdf

885,00€
796,50€ + VAT
Request lower price Interest form

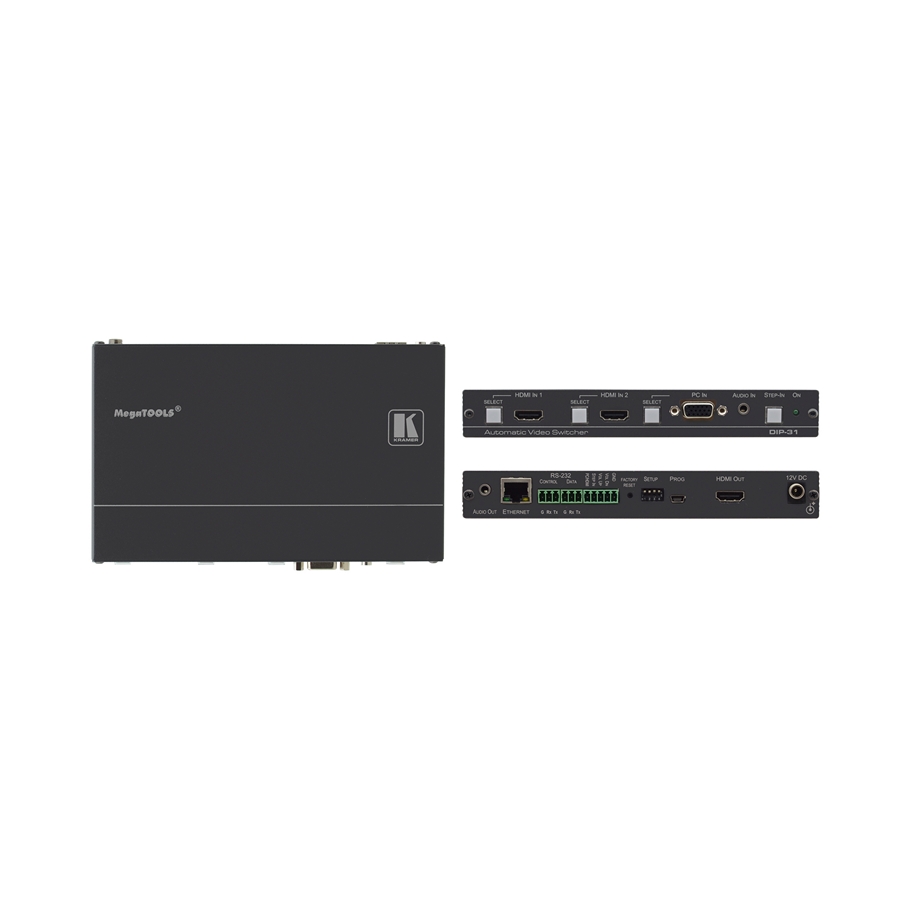

The DIP−31 is a 4K@60Hz (4:2:0) automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. It supports various modes of input selection and transmit the signal via HDMI cable to a compatible receiver (for example the VS−62H or a display/projector).
The device is a Step−in commander when connected to a matrix switcher that supports Step−in over HDMI such as the VS−62H. It also features RS−232 commands to support monitor/projector on/off.

Also known as

DIP31
(DIP 31)

  • Permanent Installation : Yes with the optional RKT2B rack adapter.

  • Analog video input (AV,Component) : 1 VGA on a 15pin HD (F) connector

  • Multiviewer, PIP : No

  • HDMI,DVI Output : 1 Output

  • Balanced Audio Input (XLR) : No

  • HD-SDI Output : No

  • HDMI,DVI Input : 2 Inputs

  • Analog video out (AV,Component) : No

  • Weight : 0.4 Kg

  • Balanced Audio output (XLR) : No

  • 3D Video Support : No

  • HD-SDI Input : No

  • Ethernet, GigE (RJ45) : Yes

  • SD-SDI Output : No

  • SD-SDI Input : No

  • Firewire (IEEE1394) connector : No

  • Waveform/Vectroscope : No

  • RS232/422 connector : Yes

  • Modular unit : No

  • Digital audio AES/EBU : No
