4.160,00€
3.744,00€ + VAT Request lower price Interest form

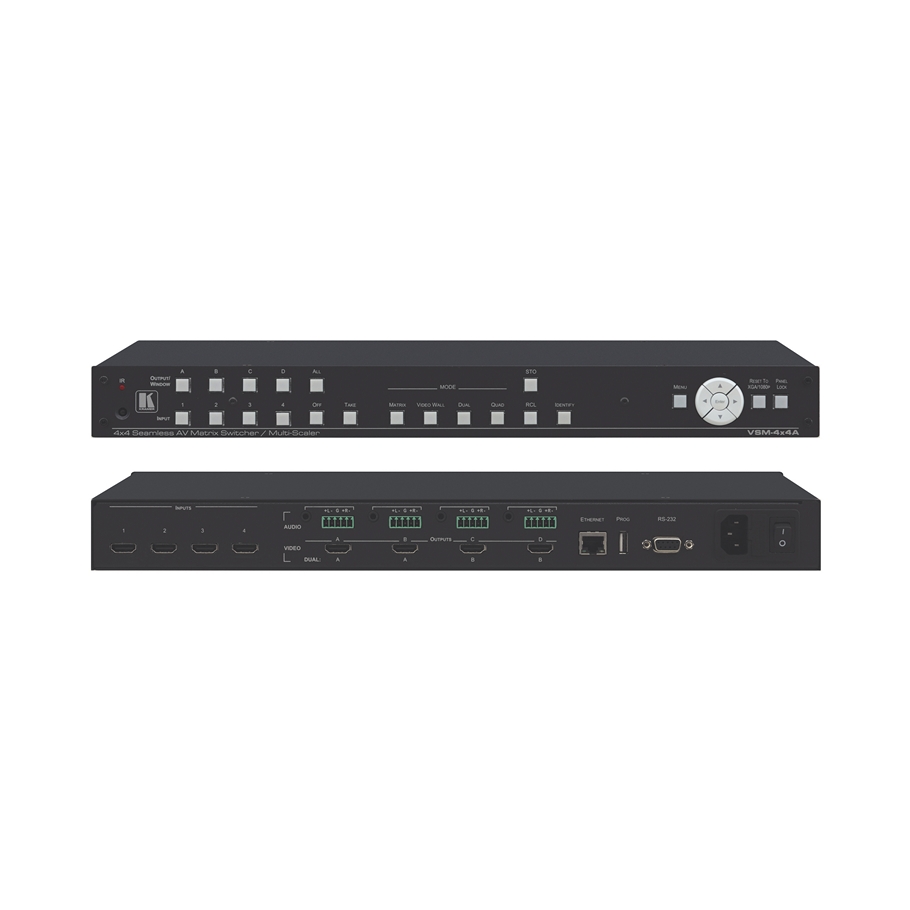

VSM−4x4A is a 4x4 seamless matrix switcher that can also be used as a video wall driver (2x2 or 1x4) or dual and quad multi−viewers. The unit enables switching between inputs with a clean video cut (frame−to−frame switching with no glitches). It supports HDMI resolutions with deep color, up to eight channels of audio and includes per−port HDCP and EDID settings.
Also known as
Permanent Installation : Yes
Analog video input (AV,Component) : No
Multiviewer, PIP : up to 4x, atrix switcher, video wall, dual/quad display
HDMI,DVI Output : 4 Outputs, HDMI, HDCP version 1.1
Balanced Audio Input (XLR) : No
HD-SDI Output : No
HDMI,DVI Input : 4 Inputs, HDMI, HDCP version 1.1
Analog video out (AV,Component) : 4 Outputs, 4 balanced stereo audio on terminal block connectors, 4 unbalanced audio on 3.5mm mini jacks
Weight : 2.7Kg
Balanced Audio output (XLR) : 4 Outputs
3D Video Support : No
HD-SDI Input : No
Ethernet, GigE (RJ45) : Yes, Ethernet with builtin Web pages
SD-SDI Output : No
SD-SDI Input : No
Firewire (IEEE1394) connector : No
Waveform/Vectroscope : No
RS232/422 connector : Yes. RS232
Modular unit : No
Digital audio AES/EBU : No
