Allied-Vision Goldeye G-033 SWIR TECless.pdf

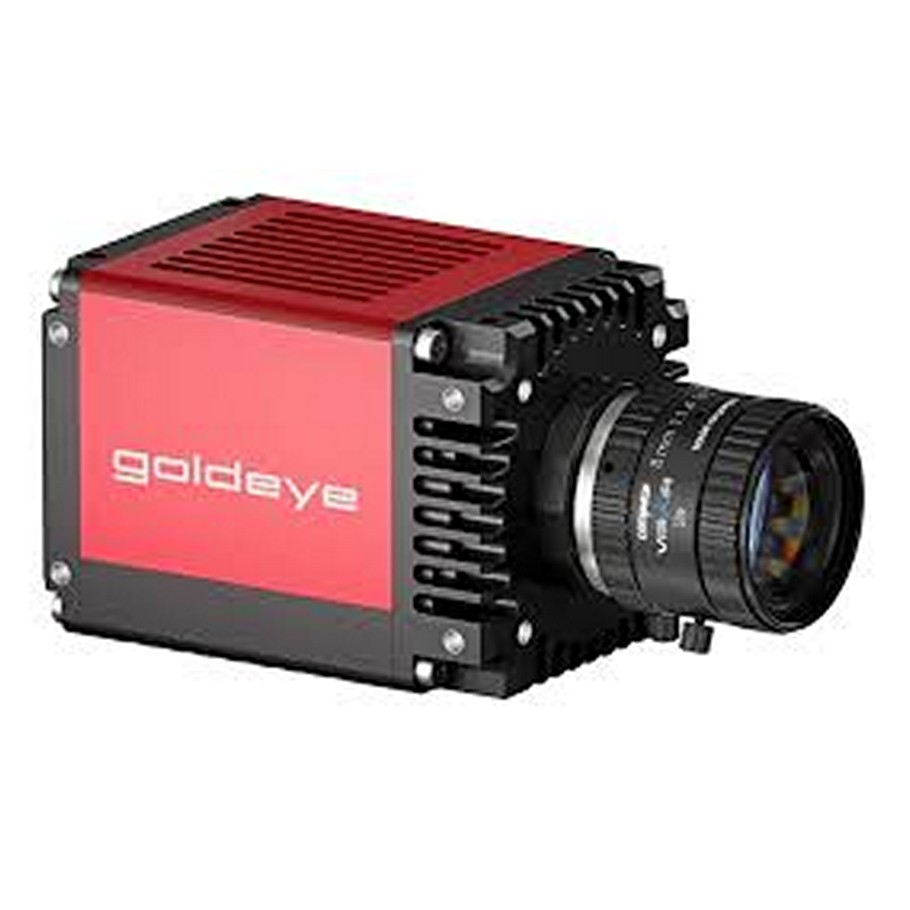

Goldeye G-033 TECless - High-speed TECless VGA InGaAs camera
The Goldeye G-033 TECless high-speed camera is the fastest VGA resolution short wave infrared camera (SWIR) with GigE Vision interface. Frame rates up to 301 fps at full resolution enable you to access versatile application fields and to speed up your processes. Thanks to its very affordable price, many cost-sensitive applications can benefit from the camera's outstanding performance.
Save time and money to integrate the camera into your system:
A small form factor and multiple mounting options let the camera fit easily into compact system designs. In addition, its standardized GigE Vision interface including Power over Ethernet (PoE) and comprehensive I/O control options simplify the connection to your software solution and the synchronization with other system components.
Several on-board image correction features contribute to the Goldeye's outstanding image quality. Reveal more of the invisible with Goldeye SWIR cameras!
Benefits and features
• Compact industrial design
• Up to 301 fps at full resolution
• GigE Vision interface with Power over Ethernet
• Comprehensive I/O control options
• Automated image correction
Also known as
Image sensor size : No standard size
Image sensor type : InGaAs
Recording media : Not supported
Analog video out (AV,Component) : No
Lens mount : C-mount
Image sensor pixels : 327.680
3D Video Support : No
Ethernet, GigE (RJ45) : Yes
Infra Red support (IR,NIR) : Yes, SWIR
Streaming : No
Firewire (IEEE1394) connector : No
Max video frame rate (fps) : 301 fps
USB 2 connector : No
RS232/422 connector : Yes, RS232 115 200 Baud, 8N1 (adjustable)
PoE : Yes,PoE
Camera Link (CL) : No
CoaxPress (CxP) connector : No
USB 3 connector : No
