2.350,00€ + VAT Request lower price Interest form

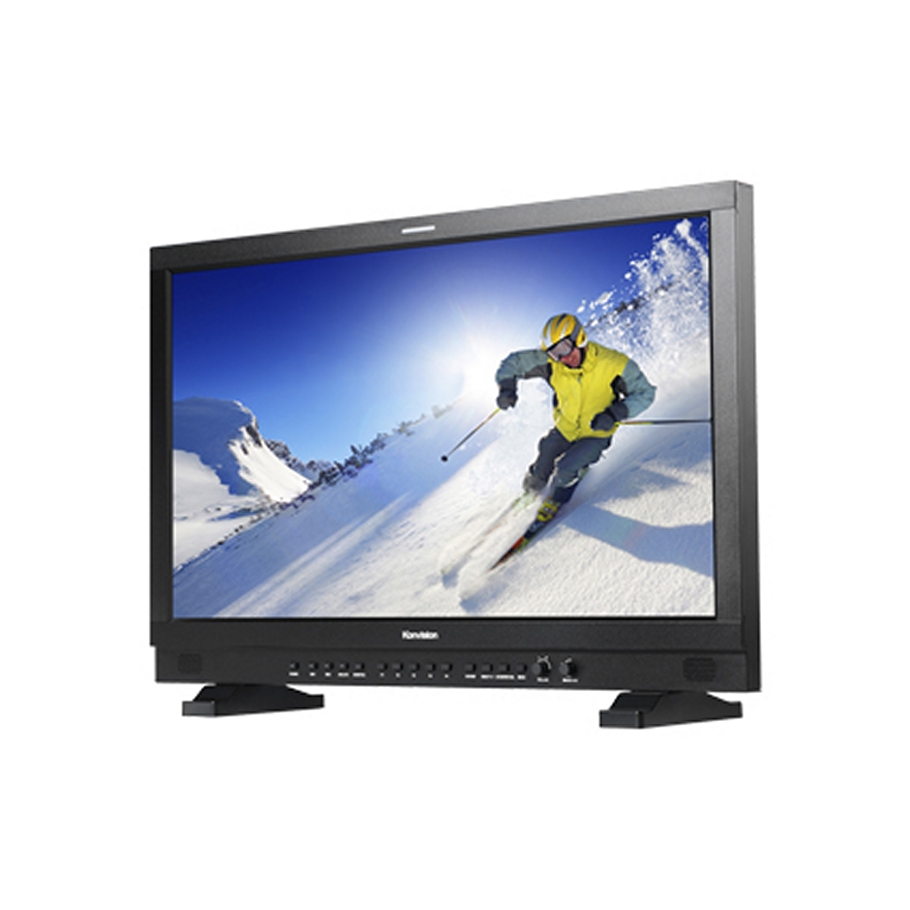

KVM-2360W is a multi-format broadcast monitor with competitive price.23inch IPS panel with FHD 1920x1080 resolution. Supporting 2x3G/HD-SDI inputs and 2 outputs,the KVM-2360W is equipped with waveform/vectorscope, histogram,PIP&PBP,Pixel Meaurement and H/V embedded audio meter display etc functions under all SDI 1,SDI 2 and HMDI signals,as well as dynamic UMD with TSL protocol.
Resolution: 1920x1080, Brightness:250cd/m2, Contrast: 1000:1,Wide viewing angle: 178/178
2K/3G/HD/SD-SDI auto detect, 2 SDI inputs and 2 SDI loop out, HDMI input, DVI input,
Composite&Component input/loop out, RS422 in/out, Ethernet/GPI control.
3D LUT Color Calibration Technology, support Lightspace and CalMAN calibration software.
Different color space selection, Available to import 3D LUT file
Both SDI and HDMI have waveform/vectorscope/histogram/focus assist, False color.
16ch audio meter display for SDI, 2ch audio meter display for HDMI. Audio Phase Display.
Pixel Measurement, PIP/PBP function, Time Code, Zebra, Picture Flip, Markers, Scan;
Static and Dynamic UMD(TSL3.1&4.0) , 1:1 mapping, Fast Mode, H/V delay. Earphone jack, TALLY Light, audio in. Both AC-IN and DC-IN power supply inputs.
Also known as
Permanent Installation : No
4Κ support : No
Analog video input (AV,Component) : 1 input, Composite & Component
Balanced Audio Input (XLR) : No
HDMI,DVI Input : 1 Input
Monitor size : 23 Inches
3D Video Support : No
HD-SDI Input : 2 Inputs
Ethernet, GigE (RJ45) : Yes, Ethernet/GPI
SD-SDI Input : 2 Inputs
USB 2 connector : No
Max brightness : 250cd/m2
Waveform/Vectroscope : Yes, histogram/focus assist, False color
Touch screen : No
RS232/422 connector : Yes, RS422
Monitor type : LCD
Digital audio AES/EBU : Yes, EmbedDed Audio
Speaker included : Yes, 2.5W-2
Max Resolution : 1920x1080 FHD
Contrast : 1.000:1
