The Blackmagic Videohub Master Control Pro allows for very flexible control because it has two main methods for changing cross points on Videohub routers. The simplest way to use Videohub Master Control Pro is for customers to simply select either destination or source and then scroll through all the cross points in the router using the larger knob on the right side of the panel. The built in LCD shows cross points as the user scrolls using large easy to read labels, and scroll order is based on alphabetical order of crosspoint labels so it’s easy to scroll to the crosspoint the customer requires even on a very large router.

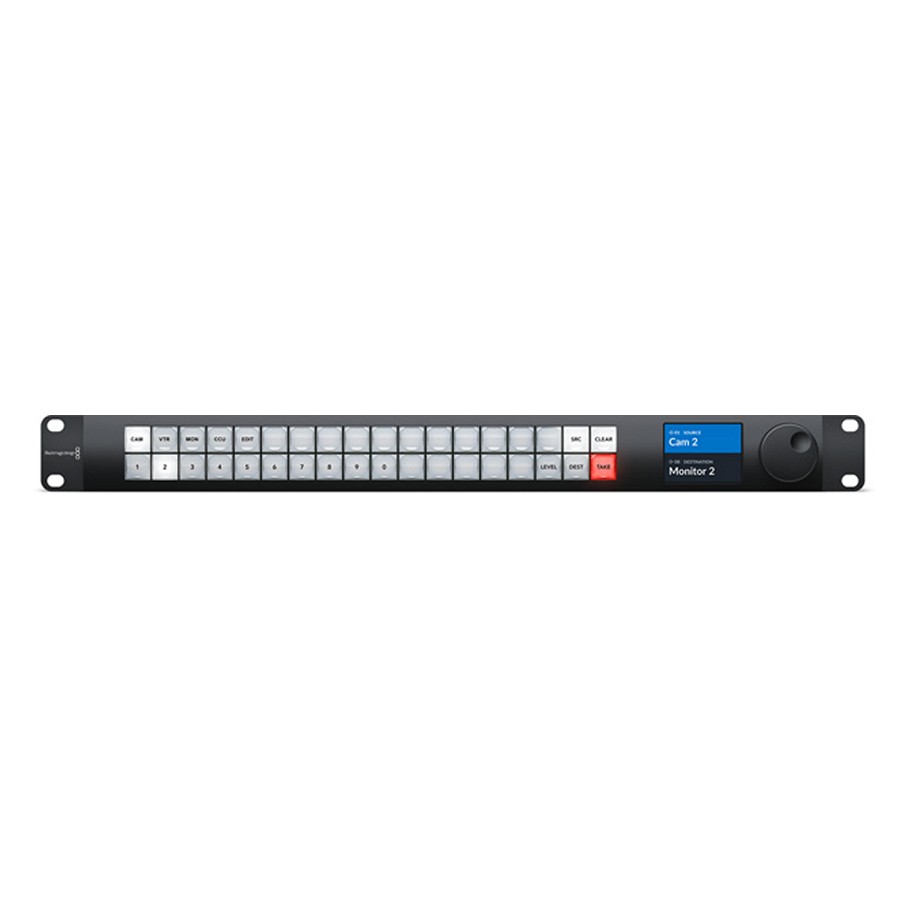

Videohub Master Control Pro

Videohub Master Control Pro also includes direct entry of cross point labels via built in buttons. These buttons are a combination of customizable buttons as well as numeric buttons. Customers can easily set the customizable buttons to labels such as “Monitor”, “Deck” or “Edit” etc, and then router cross points can be entered in by simply pressing the custom button followed by the number. For example if a customer wanted to enter in the destination “Monitor 3” then they only need to select the customized Monitor button followed by the 3 button. This means Videohub Master Control Pro gives customers full access to very large routers, but is still very fast to use.

Direct entry buttons also allow limiting the scroll list when using the spin knob. For the above example, if the user presses the Monitor button, then the list available to the spin knob would be limited to any cross point labeled Monitor. The user can then type in 3 to select monitor 3 as in the example above, or just scroll through all the monitor labels and select Monitor 3 via the spin knob.

Videohub Master Control Pro is still low cost enough so every user in a facility can afford to install one, and they can be positioned anywhere needed so everyone has easy access to changing router cross points.
