pdf Altair MTX-416.pdf

820,00€
738,00€ + VAT
Request lower price Interest form

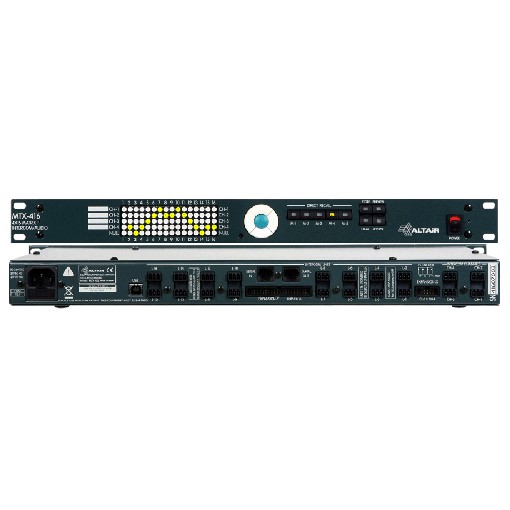

The new Altair MTX-416 is a programmable Intercom Matrix allowing instant recall of up to 5 different presets. Each preset determines the allocation of up to 16 intercom lines into the 4 available intercom channels.

The Matrix operates in vertical and exclusive mode, so any intercom equipment connected to line 1 for example can be addressed exclusively to one of the 4 channels.

Power to the lines is taken from the 4 intercom channels and distributed to the selected lines.

The design incorporates input and output link connectors for easy X and Y expansion of number of channels and/or lines. An 8 ch to 32 lines matrix system can be done with 4 units.

The use of a Matrix in any medium to large size intercom system allows for daily instant reorganization of the full intercom functionality and the ability for easy reconfiguration by the system administrator.

The unit can also be used as an 4 in to 16 out Audio matrix and by using the reverse mode, it can be operated as a 16 in to 4 out matrix-selector operating in horizontal exclusive mode.

Also known as

MTX416
(MTX 416)

Altair FL-200
Accessory Beacon Light. No headset connector.
Starting price
228,00€
Altair PC-4-200
Panel to hold 4 cue-light master units or receivers in a 1 rack unit space
Starting price
24,00€
Altair AM-100
Double Muff Headset. 4P Standard size XLR connector
Starting price
178,00€
Altair AM-100/2
Single Muff Headset. 4P Standard size XLR connector
Starting price
148,00€
Altair PS-200
Intercom Power Supply for Basic Systems. 2 intercom lines. No headset connector.
Starting price
284,00€
Altair 4W2-200
Universal 4W/2W Interface. Connection to non compatible intercom systems, professional TV cameras, etc.
Starting price
418,00€
Conducfil 6706
Multi audio 8 Χ 2 Χ 0.20
Starting price
3,23€
Prices without VAT
